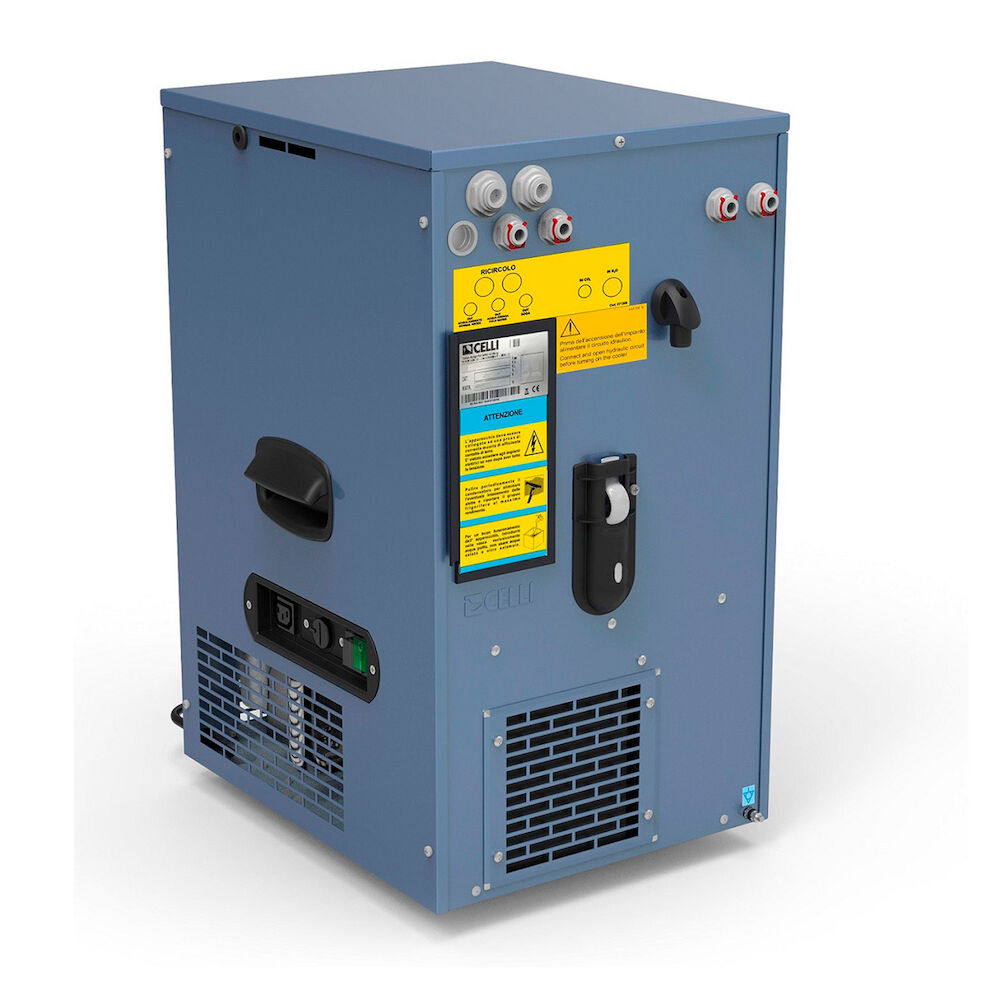

Water cooler unit Metos Temix 25
Full description
Water cooler unit Metos Temix 25 makes still water at room temperature, still chilled water or sparkling chilled water(if CO2 in use). The cooling unit is compact and easy to install. The machine is designed and built in such a way as to reduce the noise level at the source.
It's ideal for positioning beneath the sink or work-top, thereby leaving the work surface free. It does not have a dispensing button: the water is carried through thermally insulated plastic tubes from the external environment to the dispensing tower. The insulating tube (known as the “python”) and the dispensing tower are not included with the machine.
Tank capacity 20 litres, ice bank 10 kg. Compressor 1/4 Hp, cooling power 513 W. Carbonation pump 200 l/h, pump motor 120W Aisi 304 stainless steel coil. Leave a gap of 40 cm on the sides, back and top of machine for ventilation. For ambient temperatures from 10°C to 32°C.
Installation kit MG4001596 also needed (sold separately).
Technical specification
General
- Description
- Water cooler unit Metos Temix 25
Dimensions and Capacity
- Product capacity
- 150l/h, 80l continuously
- Item width mm
- 427
- Item depth mm
- 426
- Item height mm
- 632/654
- Package volume
- 0.163 m3
- Package dimensions (LxWxH)
- 50x65x50 cm
- Net weight
- 30 kg
- Package weight
- 37 kg
Technical information
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Remarks (electrical)
- ventilation gap 40 cm
- Cold water diam.
- 3/8
- Cold water min pressure kPa
- 2
- Cold water max pressure kPa
- 4
- Cold water conn. inlet
- Behind,Top,Left
- Cold water conn. height mm
- 568
- Remarks (cold water)
- CO2 inlet 3/8
- Cooling capacity W
- 513
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 95
- Sound level dB
- 70
