Water boilers
Code: MG4163078

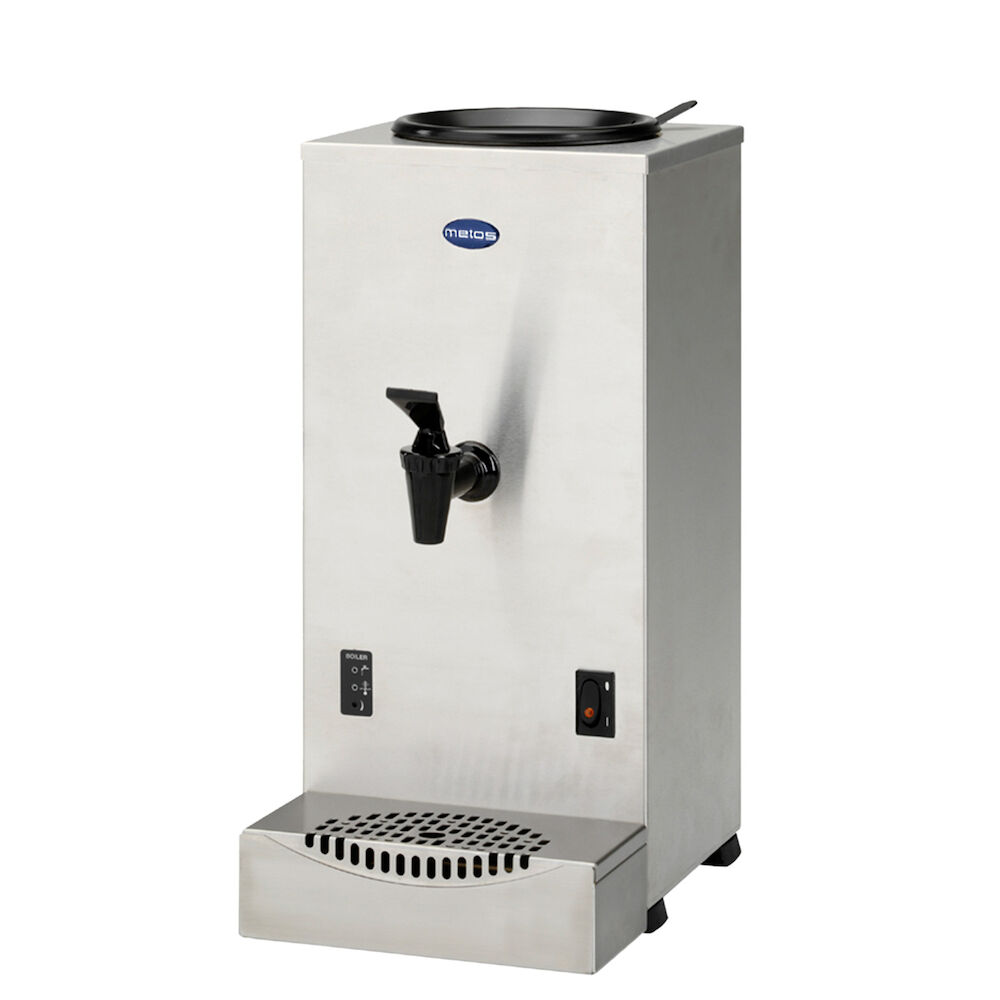

Water boiler Metos WKT 3n VA
Exact price on request
(You can build your order basket)
Full description
Table model. Fixed water connection
Technical specification
General
- Description
- Water boiler Metos WKT 3n VA
Dimensions and Capacity
- Product capacity
- 21 ltr hot water / hour
- Item width mm
- 215
- Item depth mm
- 280
- Item height mm
- 445
- Package volume
- 0.056 m3
- Package dimensions (LxWxH)
- 35x53x30 cm
- Net weight
- 5 kg
- Package weight
- 7 kg
Technical information
- Connection power kW
- 2.1
- Fuse Size A
- 14
- Connection voltage V
- 240
- Number of phases
- 1N
- Frequency Hz
- 50
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 25
- Cold water diam.
- 19
- Cold water min pressure kPa
- 400
- Cold water conn. height mm
- 25
Features
- Raw material
- stainless steel
- Cleaning
- hand wash
- Temperature area ºC
- +84°C – +98°C
- Tap height mm
- 160
- Portion size
- 2 l
Attachments
PDF · PDF2D CAD symbol2D CAD symbol from the Metos source page, 81 KB.
PDF · PDFCAD Face symbolCAD Face symbol from the Metos source page, 18 KB.
PDF · PDF3D CAD symbol3D CAD symbol from the Metos source page, 128 KB.
PDF · PDFRevit / BIM symbolRevit / BIM symbol from the Metos source page, 868 KB.
PDF · ENProduct sheet ENProduct sheet EN from the Metos source page, 118 KB.
PDF · FIProduct sheet FIProduct sheet FI from the Metos source page, 117 KB.
PDF · SEProduct sheet SEProduct sheet SE from the Metos source page, 118 KB.
PDF · NOProduct sheet NOProduct sheet NO from the Metos source page, 120 KB.
PDF · PDFCE and Conformity DeclarationCE and Conformity Declaration from the Metos source page, 93 KB.
PDF · PDFInstallation drawing Marine PDFInstallation drawing Marine PDF from the Metos source page, 49 KB.
PDF · DWGInstallation drawing Marine DWGInstallation drawing Marine DWG from the Metos source page, 406 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 4.6 MB.
PDF · PDFWiring DiagramWiring Diagram from the Metos source page, 184 KB.
PDF · PDFProduct sheet MARINEProduct sheet MARINE from the Metos source page, 121 KB.
