Vegetable slicers
Code: MG4131886

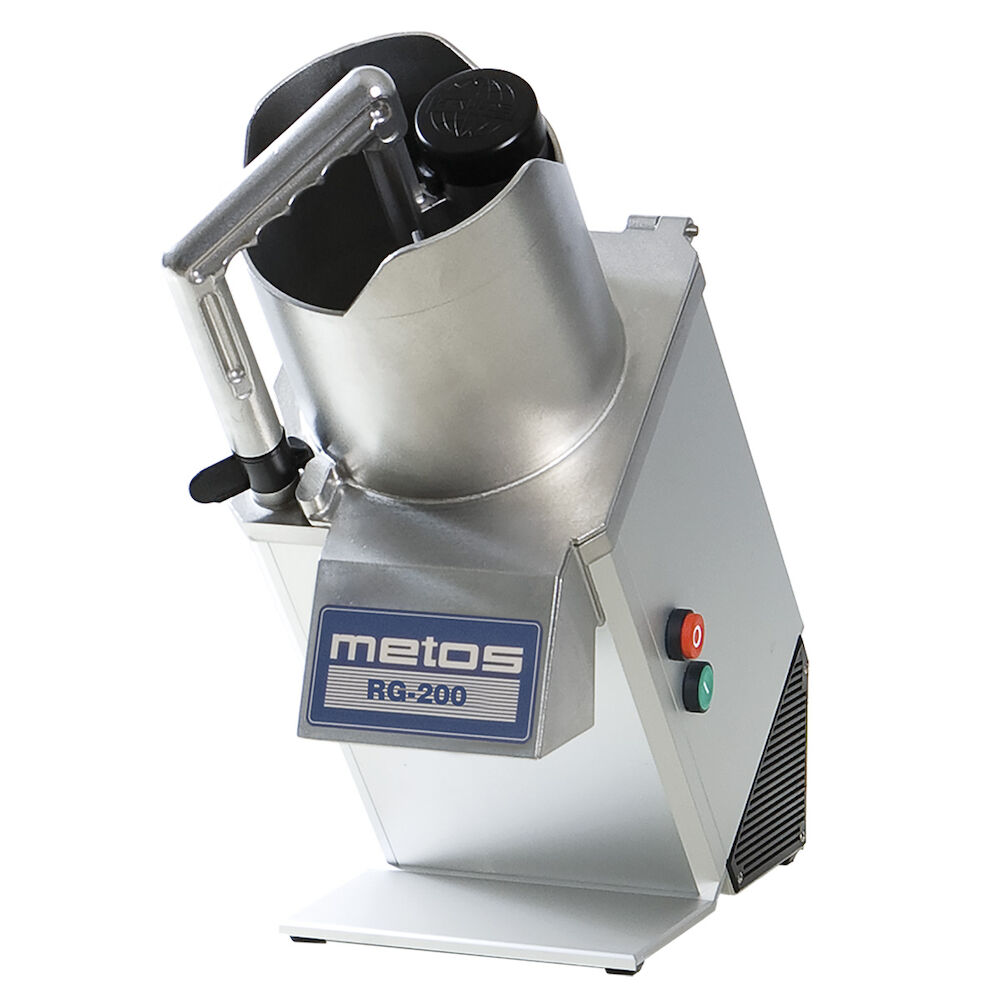

Vegetable slicer Metos RG-200 230V1~
Exact price on request
(You can build your order basket)
Full description
Machine body: aluminium alloy, discs aluminium ,. Blades stainless steel
- 2 safety switches and mechanical brake
- overheat protector in motor
- feeding tube 57 mm diameter
- capacity: 20 - 700 portions / day Extra accessorie: (will be charged separately)
Technical specification
General
- Description
- Vegetable slicer Metos RG-200 230V1~
Dimensions and Capacity
- Product capacity
- 6,7 kg/min
- Item width mm
- 215
- Item depth mm
- 475
- Item height mm
- 515
- Package volume
- 0.137 m3
- Package dimensions (LxWxH)
- 40x56x61 cm
- Net weight
- 17.3 kg
- Package weight
- 18 kg
Technical information
- Connection power kW
- 0.25
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50/60
- Type of electrical connection
- Plug
Features
- Blade diameter mm
- 185
- Portions / 24 h
- 700
- Power range kW
- 0.25
- Speed rpm
- 350
Installation
- Installation
- table model
Attachments
PDF · PDF2D CAD symbol2D CAD symbol from the Metos source page, 28 KB.
PDF · PDFCAD Face symbolCAD Face symbol from the Metos source page, 25 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 944 KB.
PDF · PDF3D CAD symbol3D CAD symbol from the Metos source page, 141 KB.
PDF · FIUser Manual FIUser Manual FI from the Metos source page, 939 KB.
PDF · PDFRevit / BIM symbolRevit / BIM symbol from the Metos source page, 860 KB.
PDF · ENProduct sheet ENProduct sheet EN from the Metos source page, 155 KB.
PDF · FIProduct sheet FIProduct sheet FI from the Metos source page, 152 KB.
PDF · SEProduct sheet SEProduct sheet SE from the Metos source page, 153 KB.
PDF · NOProduct sheet NOProduct sheet NO from the Metos source page, 155 KB.
PDF · PDFCE and Conformity DeclarationCE and Conformity Declaration from the Metos source page, 77 KB.
PDF · PDFWiring DiagramWiring Diagram from the Metos source page, 3 MB.
PDF · FIUser Manual FIUser Manual FI from the Metos source page, 939 KB.
PDF · SVUser Manual SVUser Manual SV from the Metos source page, 945 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 944 KB.
PDF · PDFInstallation drawing Marine PDFInstallation drawing Marine PDF from the Metos source page, 43 KB.
PDF · DWGInstallation drawing Marine DWGInstallation drawing Marine DWG from the Metos source page, 434 KB.
PDF · PDFProduct sheet MARINEProduct sheet MARINE from the Metos source page, 157 KB.
