Varimixers
Code: MG4025025

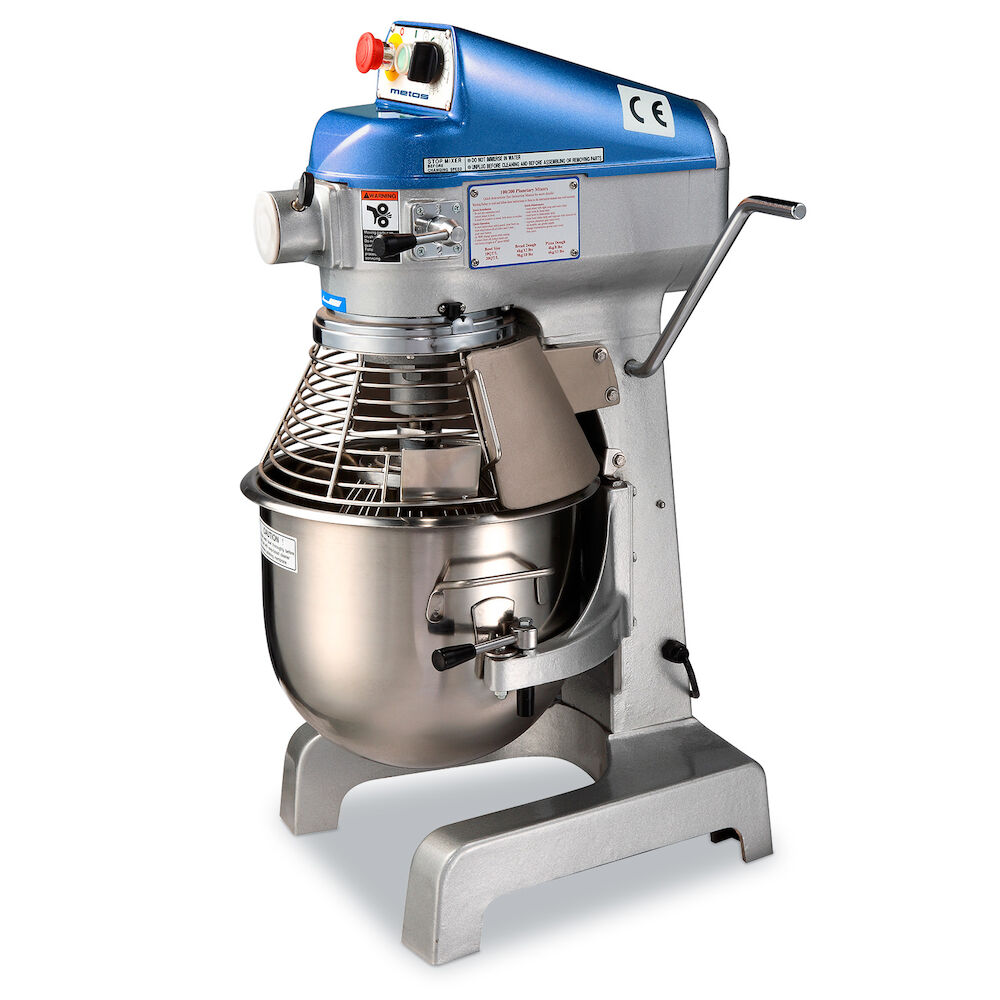

Mixer Metos SP-200A-B 230V1~ with attachment drive
Exact price on request
(You can build your order basket)
Full description
20 l universal mixer. With attachment drive
- removable stainless steel safety guard
- emergency stop Standard accessories (included in the offered price)
- stainless steel bowl 20 ltr
- aluminium flat beater Extra accessories (will be charged separately)
- 7,6 l bowl with or without tools
Technical specification
General
- Description
- Mixer Metos SP-200A-B 230V1~ with attachment drive
Dimensions and Capacity
- Product capacity
- 20 liters
- Capacity
- 20 litre
- Item width mm
- 490
- Item depth mm
- 520
- Item height mm
- 870
- Package volume
- 0.24 m3
- Package dimensions (LxWxH)
- 50x54x89 cm
- Net weight
- 100 kg
- Package weight
- 115 kg
Technical information
- Connection power kW
- 0.37
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50
- Protection rating (IP)
- 54
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 350
- Sound level dB
- 66
Features
- Power range kW
- 0.373
- Bowl transfer
- manual
- Timer
- Yes
Installation
- Installation
- floor model
Attachments
PDF · PDF2D CAD symbol2D CAD symbol from the Metos source page, 36 KB.
PDF · PDFCAD Face symbolCAD Face symbol from the Metos source page, 56 KB.
PDF · PDF3D CAD symbol3D CAD symbol from the Metos source page, 156 KB.
PDF · PDFRevit / BIM symbolRevit / BIM symbol from the Metos source page, 880 KB.
PDF · PDFInstallation drawing PDFInstallation drawing PDF from the Metos source page, 373 KB.
PDF · ENProduct sheet ENProduct sheet EN from the Metos source page, 720 KB.
PDF · FIProduct sheet FIProduct sheet FI from the Metos source page, 716 KB.
PDF · SEProduct sheet SEProduct sheet SE from the Metos source page, 720 KB.
PDF · NOProduct sheet NOProduct sheet NO from the Metos source page, 721 KB.
PDF · PDFCE and Conformity DeclarationCE and Conformity Declaration from the Metos source page, 88 KB.
PDF · PDFWiring DiagramWiring Diagram from the Metos source page, 121 KB.
PDF · FIUser Manual FIUser Manual FI from the Metos source page, 668 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 2 MB.
PDF · PDFInstallation drawing Marine PDFInstallation drawing Marine PDF from the Metos source page, 191 KB.
PDF · DWGInstallation drawing Marine DWGInstallation drawing Marine DWG from the Metos source page, 964 KB.
PDF · PDFProduct sheet MARINEProduct sheet MARINE from the Metos source page, 724 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 2.5 MB.
