Vacuum packing machines

Vacuum packing machine Metos MVS45 LX SB 20 m³
Exact price on request
(You can build your order basket)
Full description

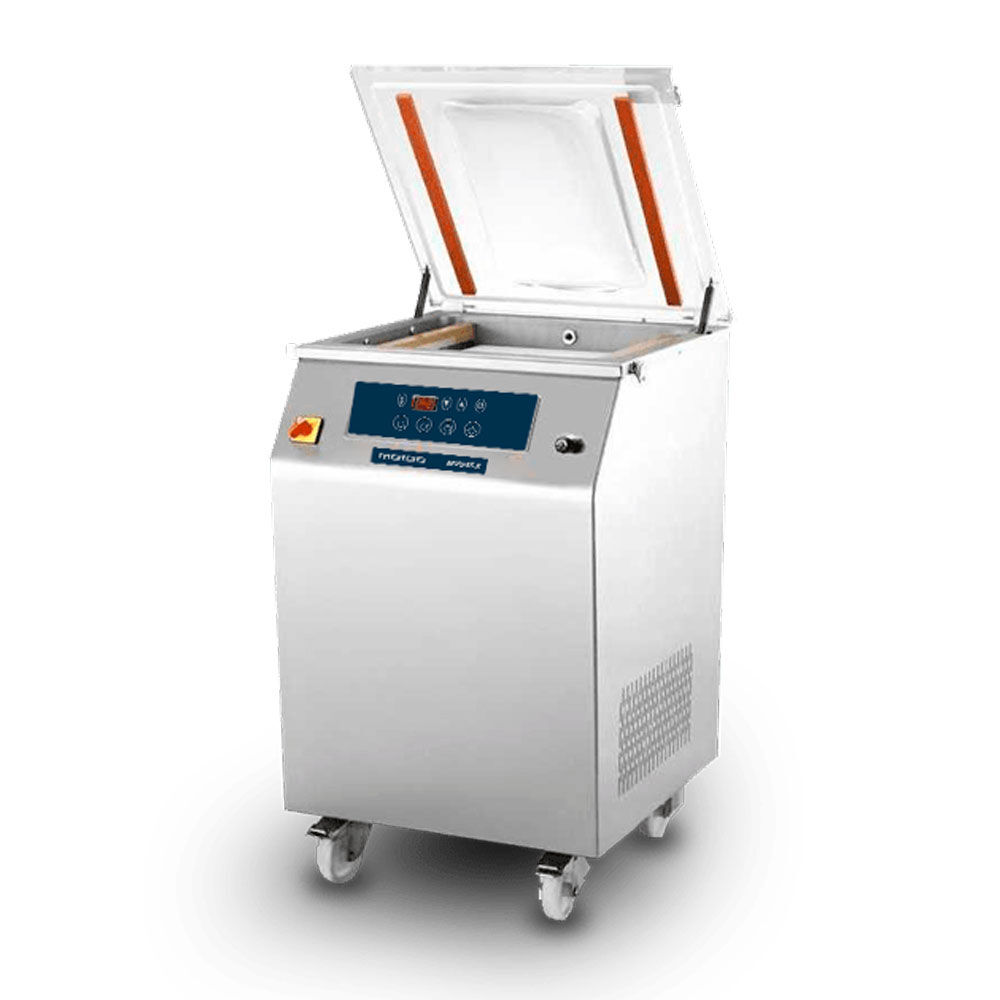

The floor model Metos MVS45 LX SIDE BARS vacuum machine has a stainless-steel structure, an operating panel designed with top chefs. By considering the needs of professional users during manufacturing, a control panel was created with up to 10 custom programs that can be adjusted by the user. The display also warns when the oil needs to be changed.
A state-of-the-art electronic sensor that processes data directly from the disk detects the level of vacuum inside the chamber. In addition, the vacuum machine can be calibrated to correct all air pressure fluctuations at different heights. The vacuum machine has a safety system that prevents overheating of the sealing bar.
- chamber volume 351x466x226 mm
- work surface height 889 mm
- height of the machine with lid open 1200 mm
- the depth of the chamber can be adjusted using one of the two filler plates (450x320x30mm mm)
- the control panel is in the front, 10 programs
- SIDE BARS: single sealing bar on each side, length 450 mm
- pump capacity 20 m³, packing cycle (vacuum 99.9%), vacuum = 24 seconds, air re-emission = 8 seconds
- transparent lid
- adjustable sealing time, 0.5-4 seconds
- sealing cutting function
- Stand-by function
- stop button
- Soft Air function
- hose connector for external vacuum Options:
- gas nozzle installation kit
- inclined filling plate series for liquid products
- vacuum bags
- hose for external vacuum
Technical specification
General
- Description
- Vacuum packing machine Metos MVS45 LX SB 20 m³
Dimensions and Capacity
- Inside measures mm
- 351 x 466 x 225 mm
- Item width mm
- 546
- Item depth mm
- 676
- Item height mm
- 1012/1200
- Package volume
- 0.861 m3
- Package dimensions (LxWxH)
- 77x86x130 cm
- Net weight
- 104 kg
- Package weight
- 129 kg
Technical information
- Connection power kW
- 2
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- 20
- Electrical conn. inlet
- Left,Behind
- Gas conn. inlet
- Behind,Right
- Sound level dB
- 68
Features
- Operation type
- electronical
- Cleaning
- washing program
- Sealing length mm
- 450
- Programmability
- programmable
Installation
- Installation
- on stand
Energy and Consumption
- Power type
- electric
