Dishwasher Metos Master Aqua 50T PS 230V1N~ (with drain pump)
Exact price on request
(You can build your order basket)
Full description
Reliable Metos Master Aqua 50T PS is a basic under-counter dishwasher designed for using in professional kitchens. It is easy to build around the dishwasher a dishwashing system for a small operation by using compatible tables, trolleys and other fixtures.
The dishwasher is equipped with a drain pump, in which case the wash water can be discharged into the washing counter sink. Comes with cable, Plug not included.
A detergent dispenser dispenses the detergent for you and keeps the measure of the detergent always constant. Detergent dispenser for a liquid detergent is available as an option.
- four wash programs (1, 1,5, 2 and 3 minutes)
- max height for dishes 320 mm
- display signal for correct temperature in tank and in final rinse
- sound and heat insulated top and door

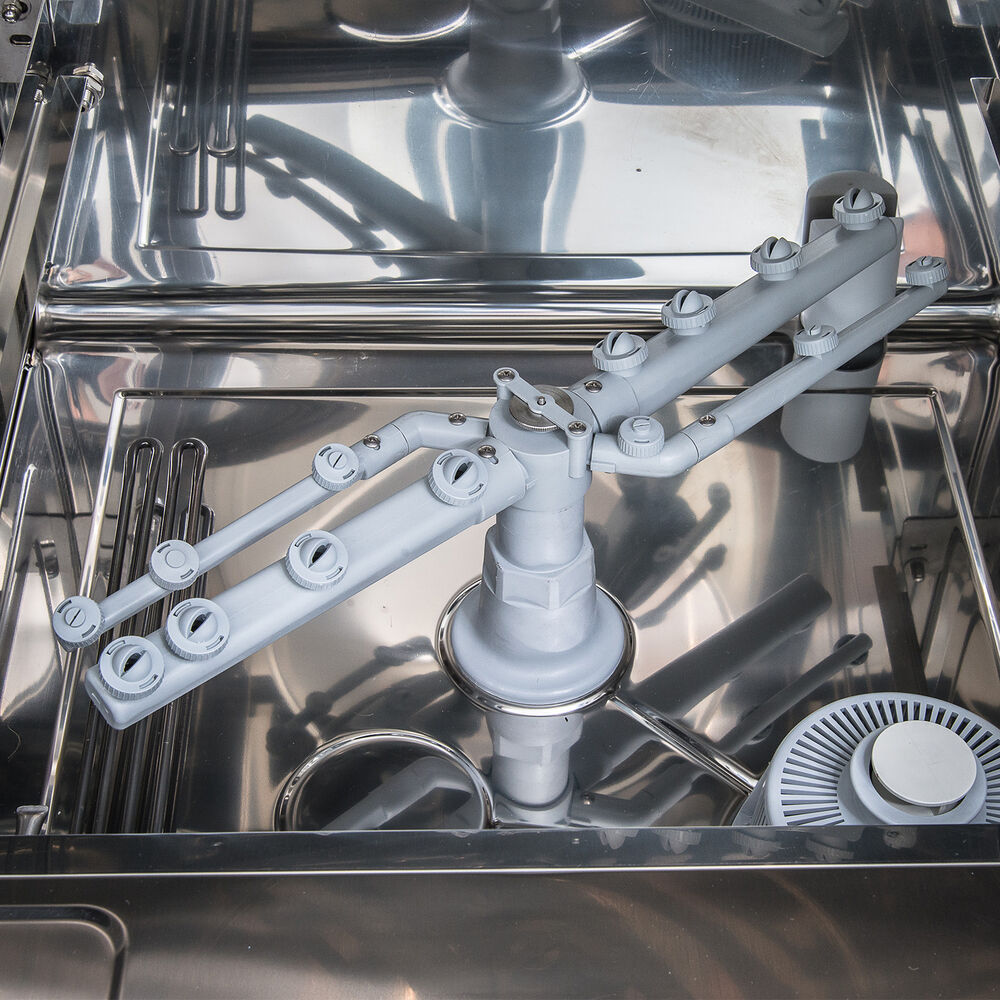

- easy to remove wash and rinse arms
- rounded edges in the tank facilitate cleaning
- water consumption 2,3 l/cycle (water pressure 200kPa)
- rack size 500x500 mm
- boiler capacity 5,7 l
- tank volume 29 l
- touch control panel on top part of the front panel
- Soft start
Delivery includes:
- rinse aid dispenser
- basket for plates
- basket for glasses
- cutlery cylinder
- connection hose for tap water
- drain pump
Optional (to be ordered separately):
- stand
- detergent dispenser
- pressure boosting pump (to be ordered together with the dishwasher)
- extra racks
- pre-wash tables and basket trolleys
Technical specification
General
- Description
- Dishwasher Metos Master Aqua 50T PS 230V1N~ (with drain pump)
Dimensions and Capacity
- Product capacity
- about 30 racks/hour
- Item width mm
- 590
- Item depth mm
- 600
- Item height mm
- 850
- Package volume
- 0.451 m3
- Package dimensions (LxWxH)
- 68x67x99 cm
- Net weight
- 67 kg
- Package weight
- 72 kg
Technical information
- Connection power kW
- 3.7
- Fuse Size A
- 20
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Protection rating (IP)
- X3
- Electrical conn. diam. mm
- 2,5
- Electrical cable length mm
- 2000
- Type of electrical connection
- Semifixed
- Remarks (cold water)
- shut off cock on inlet pipe
- Hot water diam.
- 3/4"
- Hot water thread
- External thread
- Hot water flow l/min
- 17
- Hot water min pressure kPa
- 200
- Hot water max pressure kPa
- 400
- Drain diameter
- 30
- Drain flow l/s
- 1
- Drain conn. inlet
- Bottom,Behind,Right
- Floor drain needed
- Yes
- Remarks (drain)
- Drain hose 2 m included
- Sound level dB
- 61
- Heat load sensitive W
- 1200
- Heat load latent W
- 500
- Boiler power kW
- 4.5
- Boiler volume L
- 5.7
Features
- Operation type
- electronical
- Cleaning
- washing program
- Washing basket size mm
- 500x500
- Programmability
- ready programs
- Amount of programs
- 4
- Insulation
- uninsulated
- Method of washing
- normal wash
- Drain pump
- Yes
- Model
- Aqua 50T
Energy and Consumption
- Water consumption
- Water consumption litres/cycle 2.3
- Power type
- electric
