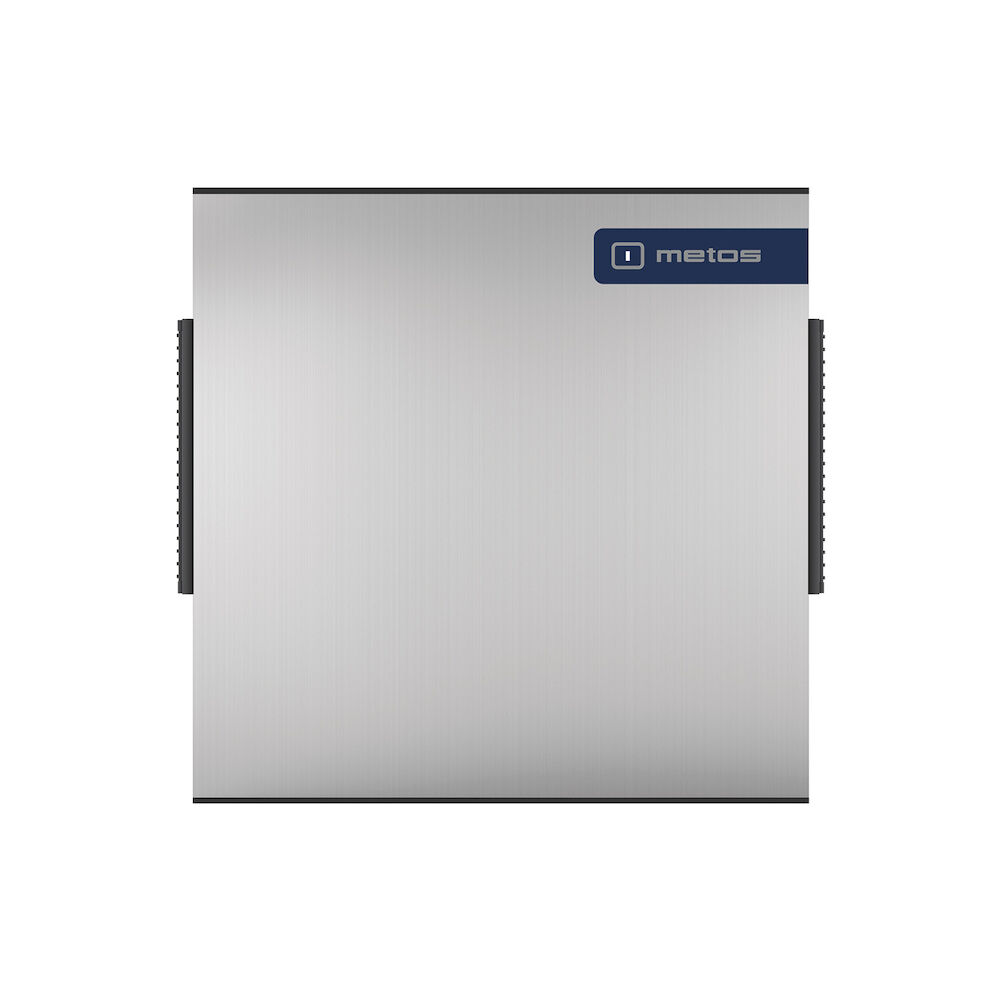

Ice maker Metos Maracuja M145 W, L-size
Full description
The Metos Icematic Maracuja-series ice makers are efficient, heavy-duty ice machines with a separate ice tank as an accessory. Optimal ice storage can be guaranteed, as ice cubes fall directly into a separate ice tank when they are ready. This is why the M-series' ice machines are perfect for nightclubs, large restaurants, fast food restaurants, hotels, and movie theaters.
Special attention has been paid to the hygiene and ease of use in the design of the machines. The machines have an automatic washing system that ensures easy cleaning. The internal cleaning and maintenance of the machine is also effortless due to easy access. The frame of the machine is made of wear-resistant and easy-to-clean stainless steel. The controls of the machines work electronically, which allows the detection of malfunctions and can be used to determine the efficiency of the machine.
- water condensation
- ice cube size 17 g, 29x29x24 mm
- separate ice container
- stainless steel body
- automatic washing system
- environmentally friendly R290 as refrigerant
- including Bluetooth/WiFi board
DELIVERY INCLUDES:
- pressure water hose
- drain hose
FACTORY OPTIONS (to be ordered with the machine):
- ozone programmable sanitation cycle
- Rainbow technology evaporator treatment
- IOT cloud connection
- Storage bin ice level adjustment
The capacity values have been calculated under conditions where the room temperature is 10°C and the water temperature is 10°C. If the water used is warmer, the output of the machine will decrease.
Technical specification
General
- Description
- Ice maker Metos Maracuja M145 W, L-size
Dimensions and Capacity
- Product capacity
- production 145 kg / 24 h
- Item width mm
- 560
- Item depth mm
- 620
- Item height mm
- 575
- Package volume
- 0.322 m3
- Package dimensions (LxWxH)
- 63x69x74 cm
- Net weight
- 53 kg
- Package weight
- 65 kg
Technical information
- Connection power kW
- 0.58
- Fuse Size A
- 10
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Protection rating (IP)
- 21
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 509
- Cold water diam.
- 3/4"
- Cold water conn. height mm
- 264
- Drain diameter
- Ø 20
- Drain conn. height mm
- 43
- Cooling capacity W
- 1967
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 120
- Remarks (refrigeration)
- GWP=3
Features
- Cleaning
- washing program
- Data transfer
- USB,WIFI
- Ice type
- ice cube
- Cooling unit
- With cooling unit
- Method of condensation
- water condensing
- Defrosting
- automatic
- Model
- water condensation -without bin
