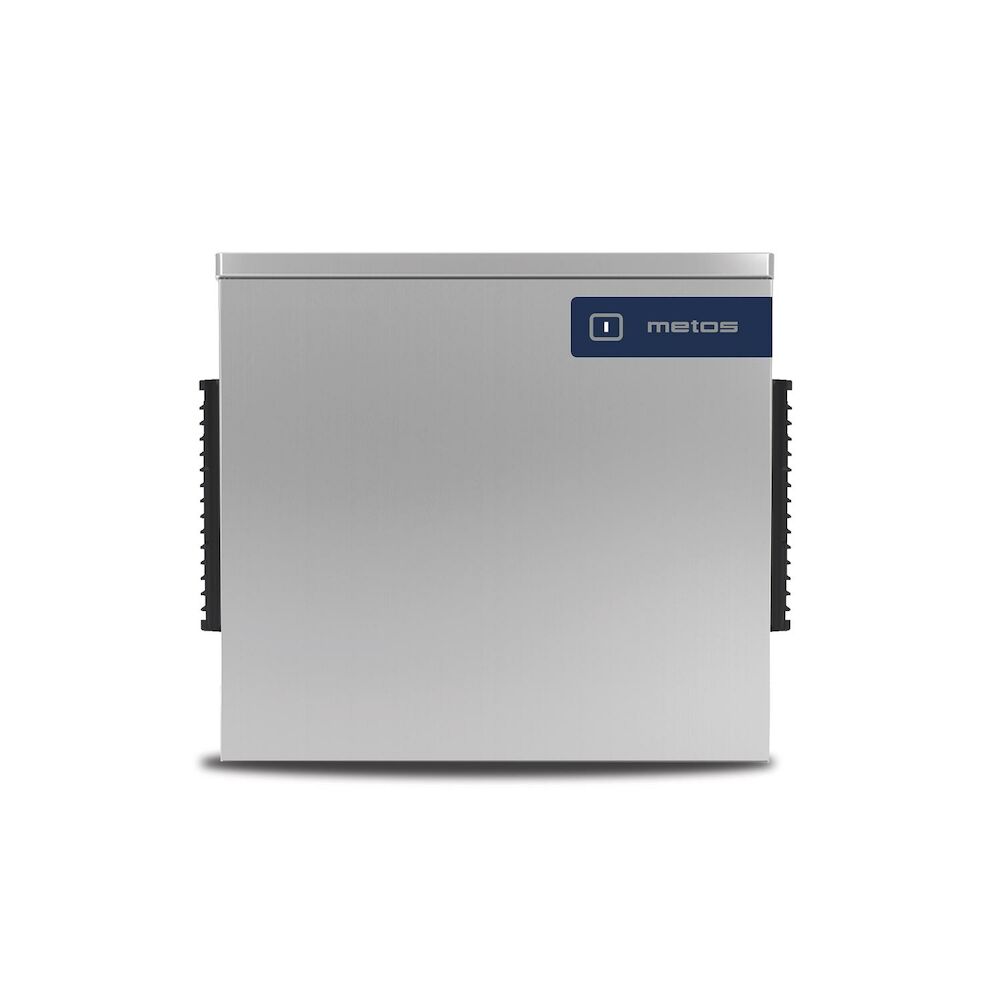

Ice maker Metos Berries B165 W
Full description
Metos B-series ice makers are efficient ice machines with a separate ice container. Optimal ice storage can be guaranteed, as ice cubes fall directly into a separate ice tank when they are ready. The humidity of the ice flake is adjustable. This allows for the presentation of orthodox food, the transport of fresh produce, and usage in wellness spas. This is why the B-series' ice machines are perfect for spas, restaurants, hotels, grocery stores and bakeries.
Special attention has been paid to the hygiene and ease of use in the design of the machines. The internal cleaning and maintenance of the machine is also effortless due to easy access. The frame of the machine is made of wear-resistant and easy-to-clean stainless steel. The controls of the machines work electronically, which allows the detection of malfunctions and can be used to determine the efficiency of the machine.
- water condensation
- the humidity of the ice flake
- stainless steel frame
- automatic washing system
- environmentally friendly R290 as refrigerant
DELIVERY INCLUDES:
- pressurized water hose
- drain hose
FACTORY OPTIONS (to be ordered with the machine):
- ozone programmable sanitation cycle
The capacity values have been calculated under conditions where the room temperature is 10°C and the water temperature is 10°C. If the water used is warmerer, the output of the machine will decrease.
Technical specification
General
- Description
- Ice maker Metos Berries B165 W
Dimensions and Capacity
- Product capacity
- production 165 kg / 24 h
- Item width mm
- 567/605
- Item depth mm
- 551/570
- Item height mm
- 535
- Package volume
- 0.264 m3
- Package dimensions (LxWxH)
- 62x60x71 cm
- Net weight
- 65 kg
- Package weight
- 72 kg
Technical information
- Connection power kW
- 0.58
- Fuse Size A
- 10
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Protection rating (IP)
- 21
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 477
- Cold water diam.
- 3/4"
- Cold water conn. height mm
- 376
- Drain diameter
- Ø 20
- Drain conn. height mm
- 56
- Cooling capacity W
- 665
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 80
- Remarks (refrigeration)
- GWP=3
Features
- Cleaning
- washing program
- Ice type
- ice flake
- Cooling unit
- With cooling unit
- Method of condensation
- water condensing
- Defrosting
- automatic
- Model
- water condensation -without bin
