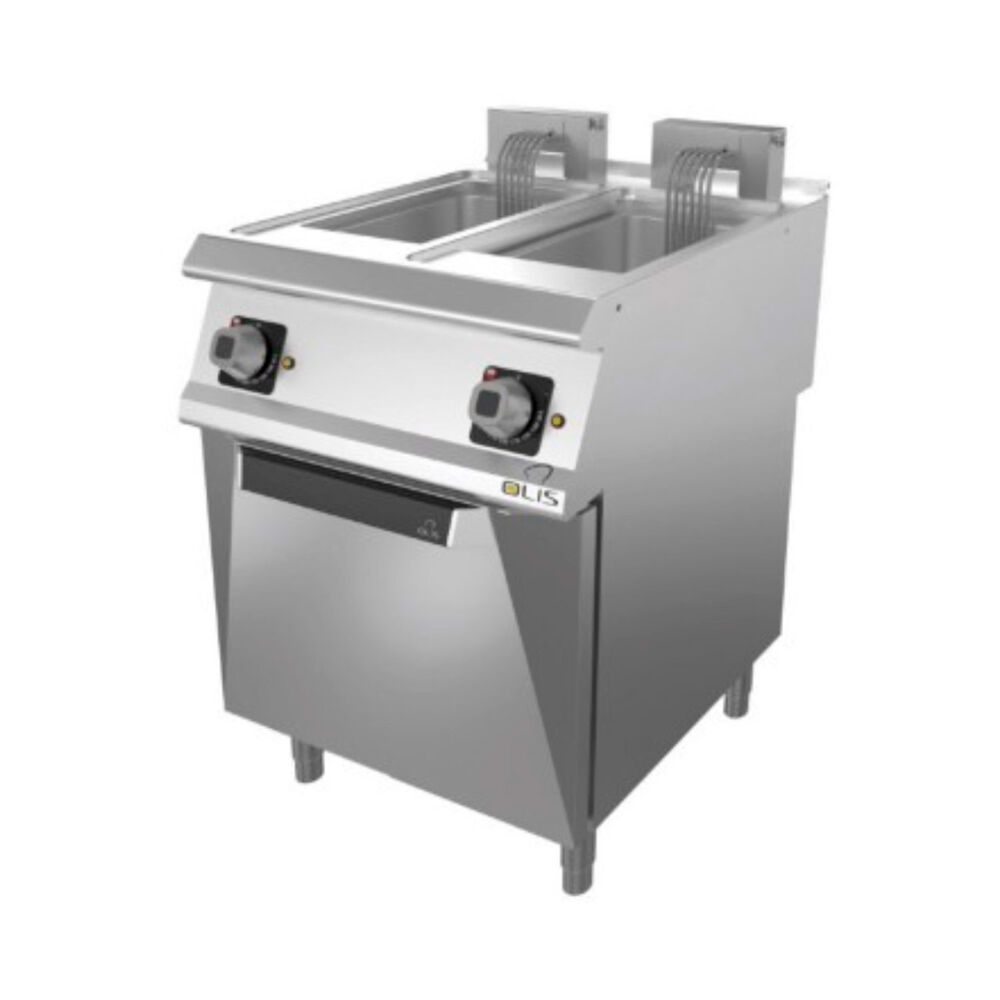

Fryer Metos Diamante D7310/10 FRERE with 10 litres basin
Full description
The Metos Diamante D7310 /10 FRERE, has two tanks in AISI 18/10 stainless steel with cold zone and foam expansion zone. Oil drain cocks. Basins to collect oil on request. Safety thermostat (230 °C) against excessive oil over -candidates. Protection control with IPX5 waterliter. Includes 2 Frying Baskets 157x337x120mm. Resistance completely removable from the tank to allow faster and more complete cleaning. Knobs and knob bezels can be washed at the end of the working day without affecting performance or safety.
The Metos Diamante 70 dining set is designed in every detail to be an effective and functional solution from preparation to cooking, without losing sight of its easy cleaning. Sturdy, stylish and hygienic Diamante 70 Series is available as a table top model or with a stand, single or multiple combination, from small to large size kitchens.
- two pool, 10 l fat
- basin with cold zone and hot water
- an oil tap
- electromechanical
- thermostat control
- security thermostat
- tilting heating elements
- overheating protection
- large controllers are splash-proof
- stainless steel frame and legs
- adjustable height 840 ... 900 mm
- with stand
SHIPPING INCLUDES:
- frying basket 157x337x120 mm
Technical specification
General
- Description
- Fryer Metos Diamante D7310/10 FRERE with 10 litres basin
Dimensions and Capacity
- Product capacity
- 10 liters
- Item width mm
- 600
- Item depth mm
- 700
- Item height mm
- 850
- Package volume
- 0.44 m3
- Package dimensions (LxWxH)
- 45x85x115 cm
- Net weight
- 57 kg
- Package weight
- 60 kg
Technical information
- Connection power kW
- 18
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Raw material
- stainless steel
- Type
- electric
- Operation type
- electromechanical
- Tank volume L
- 2x10
- Temperature probe
- No
- Oil filtering
- No
- Timer
- No
- Model
- Diamante
