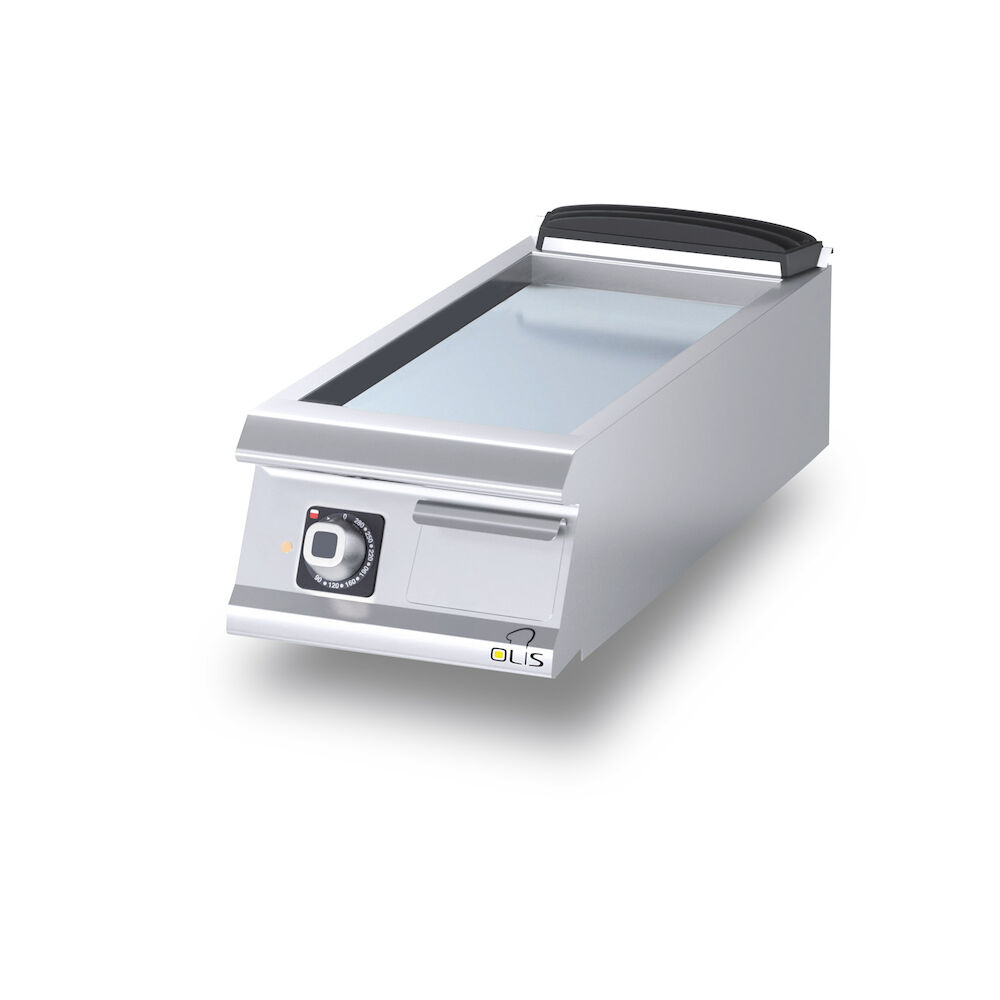

Griddle stainless steel Metos Diamante D72/10TFTEC table top model
Full description
The Metos Diamante 70 D72/10TFTEA electric table top model grill has a smooth, stainless steel surface. The grill has the temperature of which can be regulated between 110 °C...280 °C. The control panel has an indicator light, which illuminates when the grill zone is switched on. The grill surface is welded to the exterior of the unit and is recessed by 40 mm, which provides a greater cooking surface and prevents dirt from collecting between the exterior and the surface of the grill. In addition, the grill surface can be inclined 10 mm to the front, which allows grease to flow into the large grease trap.
Every detail of the strong, stylish and hygienic restaurant range series Metos Diamante 70 has been planned as an efficient and functioning solution, from pre-treatment to the preparation of the food itself, without forgetting the need to easily clean the range. Diamante 70 series ranges are available as a table top model as well as with its own cupboard, as single or multiple combined units, and are suitable for use in small to mid-sized to large kitchens. Laser cut hobs allow for the seamless joining together of units into cleanly connected islands or lines in places of heavy use, such as large kitchens.
- table top model
- smooth stainless steel surface
- large splash proof control knobs
- overheating protection
EXTRA ACCESSORIES (can be ordered separately):
- splash guard
- open stand
- stand with guide rails
- cupboard doors
- cupboard doors for utensil frames
- utensil frames; knife rack, utensil rack, spice rack frame, spice jar rack
- drawer for the cupboard
- with a heated bottom
- socket
- side panels
Technical specification
General
- Description
- Griddle stainless steel Metos Diamante D72/10TFTEC table top model
Dimensions and Capacity
- Item width mm
- 400
- Item depth mm
- 730
- Item height mm
- 250
- Package volume
- 0.108 m3
- Package dimensions (LxWxH)
- 45x80x30 cm
- Net weight
- 49 kg
- Package weight
- 59 kg
Technical information
- Connection power kW
- 5.4
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
Features
- Type
- electric
- Operation type
- electromechanical
- Top material type
- chrome
- Griddle type
- frytop
Installation
- Installation
- table model
Energy and Consumption
- Power type
- electric
