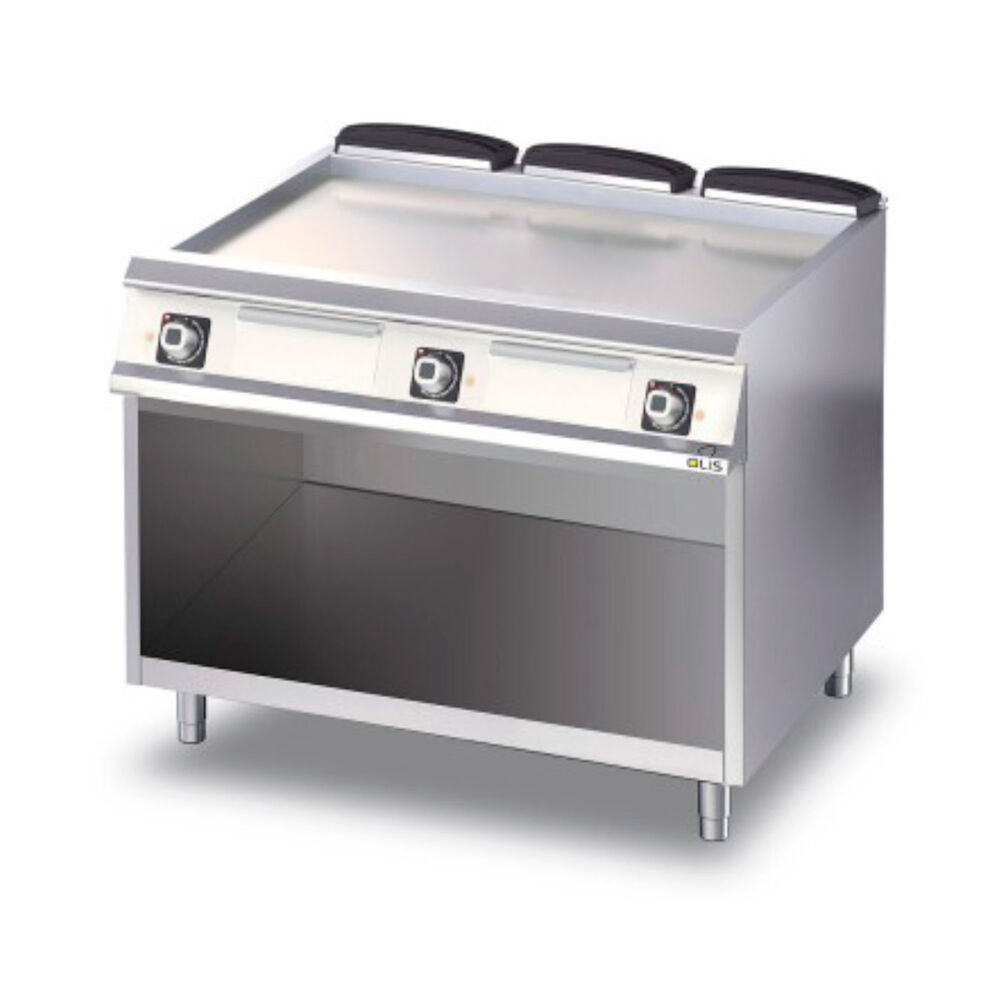

Griddle smooth Metos Diamante D76/10 FTEA with open cupboard
Full description
Open stand electric grill Metos Diamante 70 D76/10 FTEA has a smooth stainless steel surface. The grill has three cooking zones, the temperature of which can be regulated between 110 °C...280 °C. The control panel has an indicator light, which illuminates when the grill zone is switched on. The grill surface is welded to the exterior of the unit and is recessed by 40 mm, which provides a greater cooking surface and prevents dirt from collecting between the exterior and the surface of the grill. In addition, the grill surface can be inclined 10 mm to the front, which allows grease to flow into the large grease trap.
Every detail of the strong, stylish and hygienic restaurant range series Metos Diamante 70 has been planned as an efficient and functioning solution, from pre-treatment to the preparation of the food itself, without forgetting the need to easily clean the range. Diamante 70 series ranges are available as a table top model as well as with its own cupboard, as single or multiple combined units, and are suitable for use in small to mid-sized to large kitchens. Laser cut hobs allow for the seamless joining together of units into cleanly connected islands or lines in places of heavy use, such as large kitchens.
- - open cupboard
- - smooth stainless steel surface
- three cooking zones
- - large splash proof control knobs
- - exterior and feet are made from stainless steel
- - adjustable height 840...900 mm
- overheating protection.
EXTRA ACCESSORIES (can be ordered separately):
- - splash guard
- - cupboard doors
- - cupboard doors for utensil frames
- utensil frames; knife rack, utensil rack, spice rack frame, spice jar
- rack
- - drawer for the cupboard
- - cupboard guide rails (6 guide rails)
- support for guide rails
- - with a heated bottom
- - socket
- side panels.
Technical specification
General
- Description
- Griddle smooth Metos Diamante D76/10 FTEA with open cupboard
Dimensions and Capacity
- Item width mm
- 1200
- Item depth mm
- 730
- Item height mm
- 870
- Package volume
- 0.97 m3
- Package dimensions (LxWxH)
- 125x80x97 cm
- Net weight
- 115 kg
- Package weight
- 130 kg
Technical information
- Connection power kW
- 16.2
- Fuse Size A
- 25
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Raw material
- stainless steel
- Type
- electric
- Operation type
- electromechanical
- Top material type
- stainless steel
- Frying top type
- smooth
- Griddle type
- frytop
- Model
- Diamante
Installation
- Installation
- fixed
- Installation
- floor model
- Installation
- free standing
