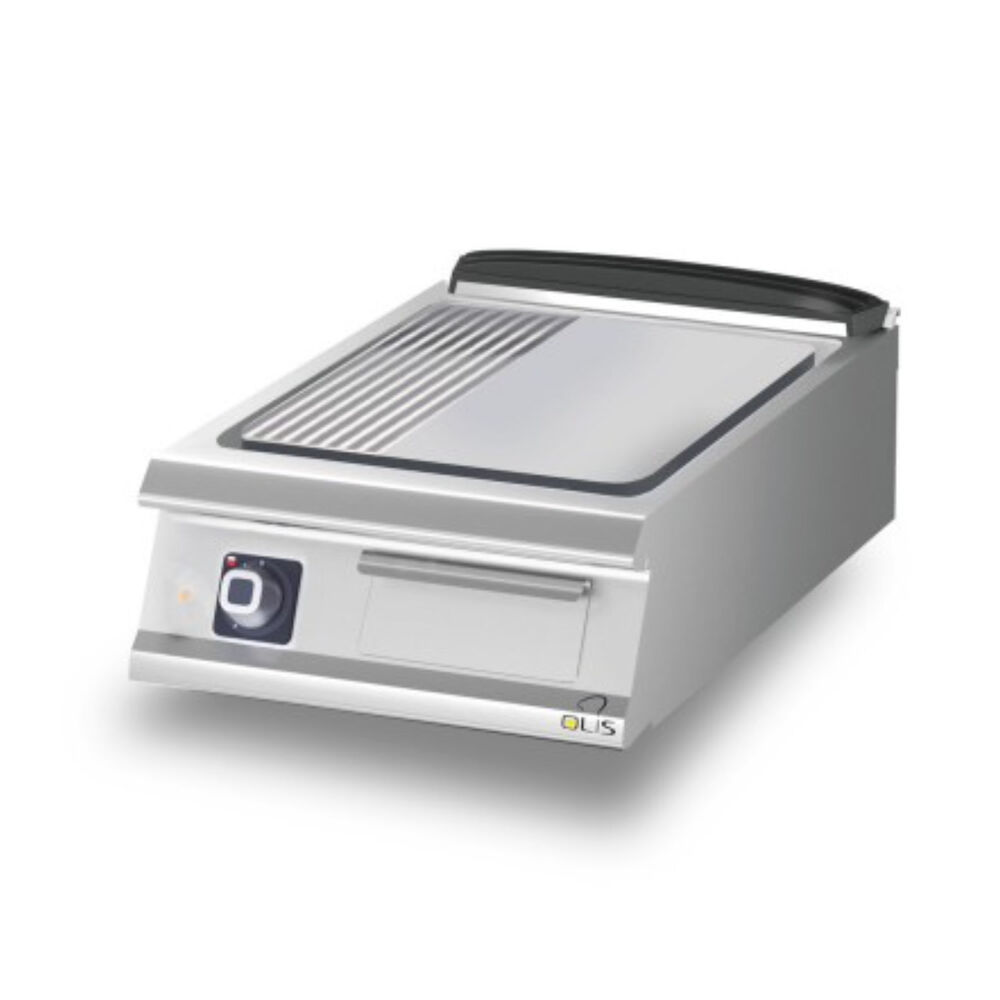

Griddle chromium/grooved Metos Diamante D93/10TFTEC1/3R table
Full description
Electric griddle Metos D93/10TSFTEC1/3R with chromium plate - 1/3 grooved and 2/3 smooth, is equipped with all the power, robustness and functionality you need to work efficiently.
- Tabletop version, 1/3 grooved and 2/3 smooth chromium plate
- Stainless steel coating with Scotch Brite finish
- 15 mm thick cooking plate totally independent of the top
- Large canal canopy along the entire perimeter of the plate for the collection of cooking residues, inclined towards the front for the decelusion of the liquids in the large drawer
- Large fat collection drawer
- Uniform cooking temperature on the whole plate. Optimizing the heat in the coach area and increasing the comfort of operators in the kitchen.
- Plate not welded to the machine with optimization of the structural points subjected to thermal stress
-Too full cap in stainlessness, equipped as standard for the management of the flooding of the canaline
- Plate not welded to speed up maintenance interventions and any replacements in users
- reduced energy power, an increase in yield per cm2 which allows a reduction in consumption up to 15% compared to traditional versions
- Heating by means of armored resistances in incoloy
- Thermostatically controlled cooking temperature and adjustable from 110 to 280 ° C
- Safety thermostat
Technical specification
General
- Description
- Griddle chromium/grooved Metos Diamante D93/10TFTEC1/3R table
Dimensions and Capacity
- Item width mm
- 600
- Item depth mm
- 900
- Item height mm
- 250
- Package volume
- 0.216 m3
- Package dimensions (LxWxH)
- 65x95x35 cm
- Net weight
- 90 kg
- Package weight
- 100 kg
Technical information
- Connection power kW
- 10.5
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Type of electrical connection
- Semifixed
Features
- Raw material
- stainless steel
- Type
- electric
- Operation type
- electromechanical
- Top material type
- chrome
- Frying top type
- ribbed
- Griddle type
- frytop
- Model
- Diamante
Installation
- Installation
- free standing
- Installation
- table model
- Installation
- fixed
