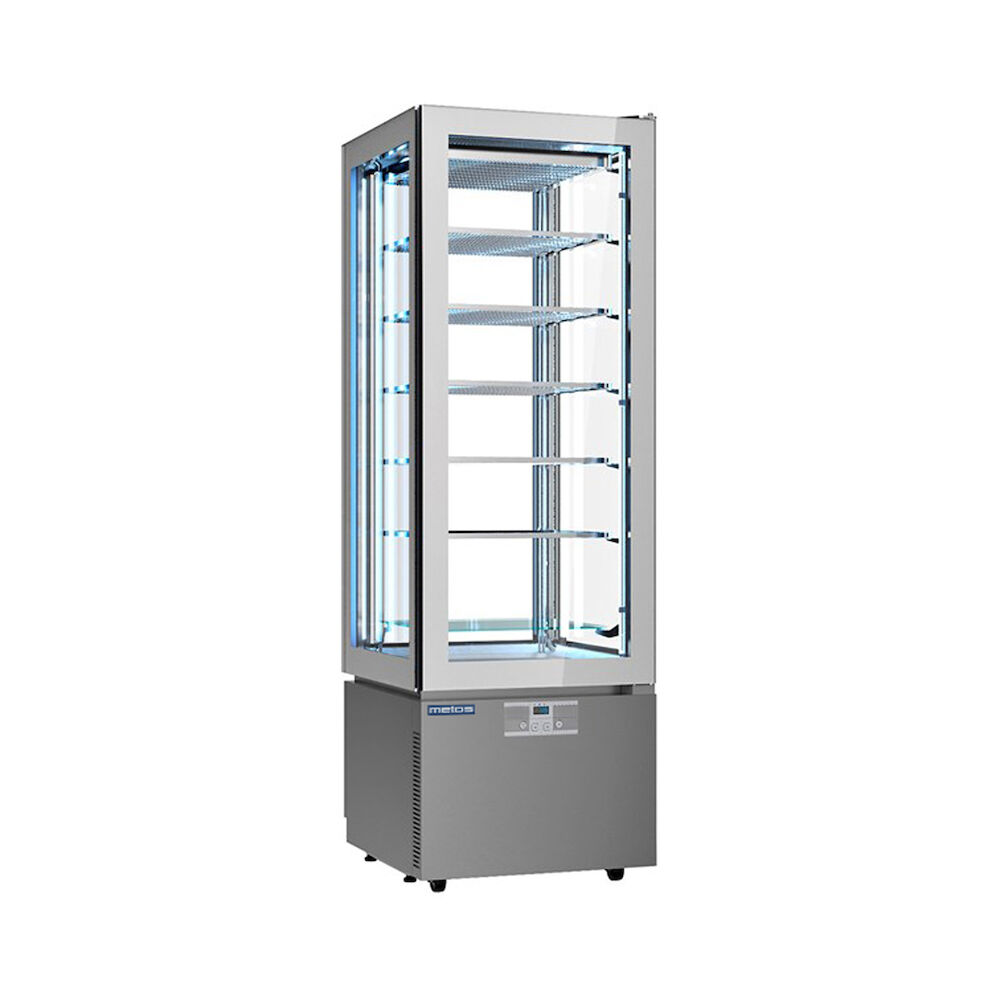

Vertical freezer display Metos Luxor Classic Slim KG6G
Full description
Metos Luxor Classic Slim KG6G is an elegant, innovative and adaptable vertical slim freezer display that creates an attractive and exclusive environment for the products sold. In addition to the walls and shelves that are made of hardened glass, the thin rack shelves that are powered with static cooling allow for an unobstructed view of the products inside the display.
At only 60 cm wide, the Metos Luxor Classic Slim KG6G vertical freezer display is intended for storing of frozen confectionery products and ice-cream. Equipped with five (450x460 mm) rack shelves, one glass shelf, LED-lights and a right hinged door, the vertical cold display creates a clear and light frame for products. The display's cold area can be set to between -25°C…-15°C. The display has a static cooler, which distributes the air evenly across the whole area.
The lower part of the display is made of stainless steel with an anti-fingerprint serigraphy surface. The lower part of the frame masterfully hides the wheels, enabling the easy movability of the display.
- five cold rack shelves (450x460 mm) and a glass shelf (450x420 mm)
- cold area -25°…-15°C
- right hinged door
- LED-lights at the front of the display, behind the door
- electronic control board with a digital screen
- HACCP alarm system
- manual melting
- heating elements that prevent the compression of moisture
- stainless steel lower frame, grey silk printed display frame, hardened glass walls, stainless steel shelf support system
- the display works in an environment where the max. temperature is +30°C and the relative humidity is 55%
Delivery includes:
- five rack shelves and a glass shelf
Technical specification
General
- Description
- Vertical freezer display Metos Luxor Classic Slim KG6G
Dimensions and Capacity
- Product capacity
- 324 litres
- Item width mm
- 600
- Item depth mm
- 645
- Item height mm
- 1840
- Package volume
- 1.136 m3
- Package dimensions (LxWxH)
- 74x76x202 cm
- Net weight
- 200 kg
- Package weight
- 222 kg
Technical information
- Connection power kW
- 0.85
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 50
- Cooling capacity W
- 931
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 105
- Remarks (refrigeration)
- -25°C/-15°C
