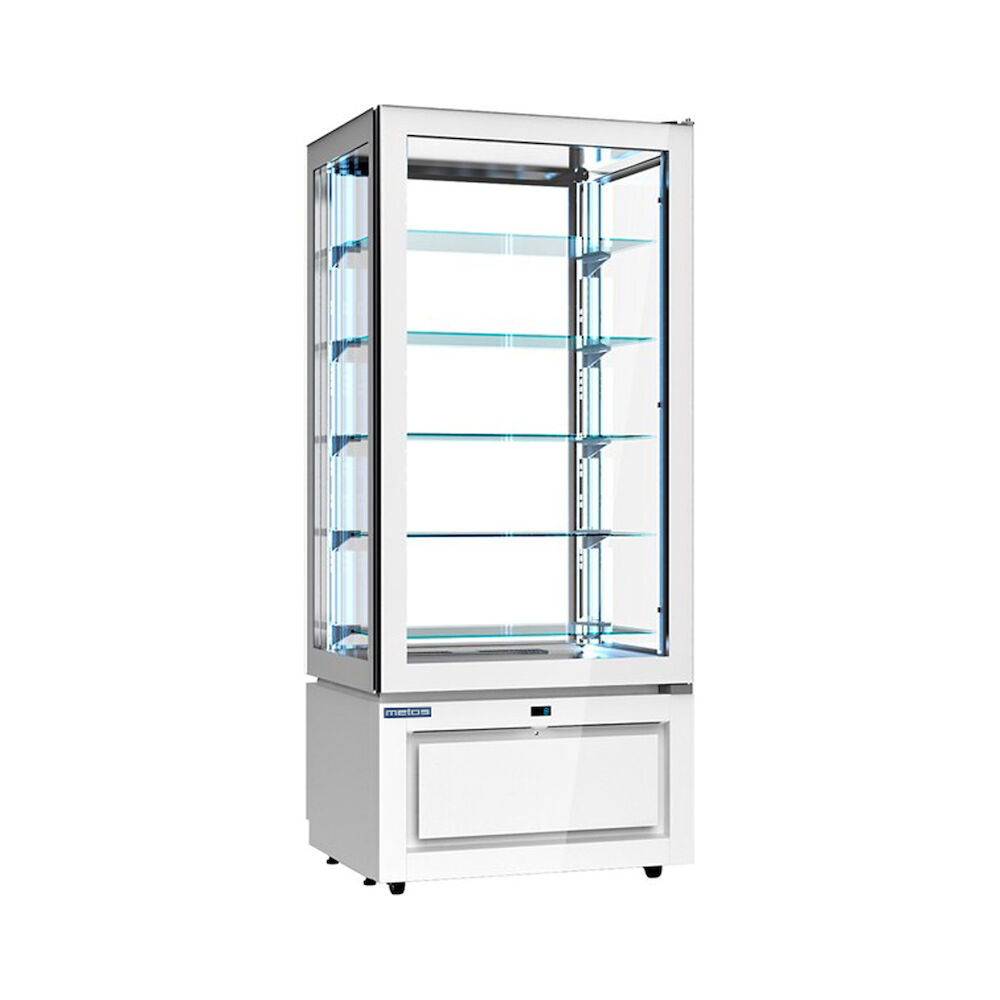

Vertical cold display Metos Luxor KP8V white
Full description
Metos Luxor KP8V is an elegant, innovative and adaptable vertical slim display that creates an attractive and exclusive environment for the products sold. In addition to the walls and shelves that are made of hardened glass, the barely noticeable shelf support system allows for an unobstructed view of the products inside the display.
The Metos Luxor KP8V vertical display is intended for storing confectionery products and drinks. Equipped with five (700x470 mm) glass shelves, shade adjustable LED-lights and a right hinged door, the vertical cold display creates a clear and light frame for products. The display's cold area can be set to between +2°C…+10°C. The display has a cooling system with a fan, which distributes the air evenly across the whole area.
The display's frame is covered with white (RAL 9010) silk printing. The lower part of the frame masterfully hides the wheels, enabling the easy movability of the display. The display has an automatic melting and water evaporating system.
- five glass shelves (700x470 mm), weight limit 12 kg/per shelf
- cold area +2°…+10°C
- right hinged door
- LED-lights at the corners, shade adjustable between 3000-6000K
- electronic control board with a digital screen
- HACCP alarm system
- automatic melting and water evaporating system
- white silk printed frame, hardened glass walls and shelves, stainless steel shelf support system
- the display works in an environment where the max. temperature is +30°C and the relative humidity is 55%
Delivery includes:
- five glass shelves with support system
Optional accessories (order separately):
- extra glass shelf with support system
- bottle rack shelf for 14 bottles
Technical specification
General
- Description
- Vertical cold display Metos Luxor KP8V white
Dimensions and Capacity
- Product capacity
- 490 litres
- Item width mm
- 805
- Item depth mm
- 645
- Item height mm
- 1840
- Package volume
- 1.366 m3
- Package dimensions (LxWxH)
- 89x76x202 cm
- Net weight
- 225 kg
- Package weight
- 247 kg
Technical information
- Connection power kW
- 0.55
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 50
- Type of the refrigerant
- R290
- Remarks (refrigeration)
- +2°C/+10°C
