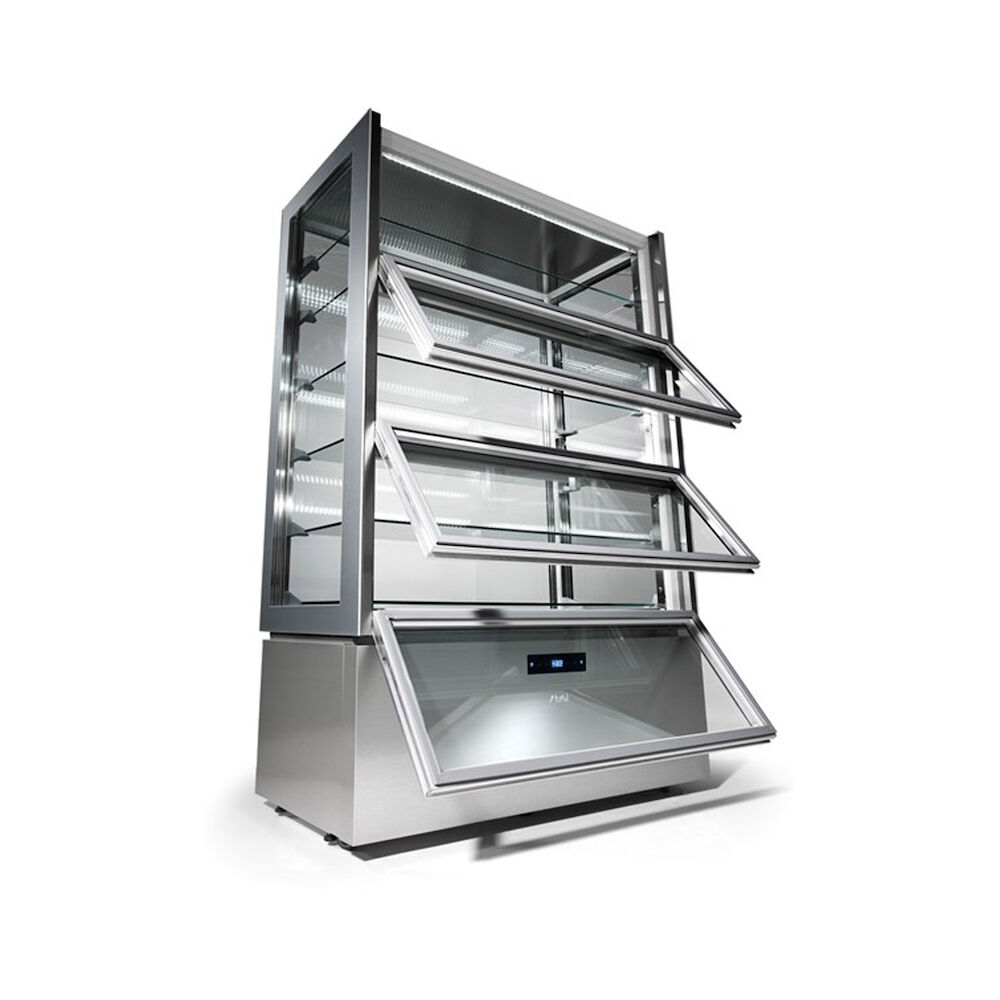

Cold display Metos Luxor Double KP12Q
Full description
Metos Luxor Double KP12Q is an elegant, innovative and adaptable vertical slim display that creates an attractive and exclusive environment for the products sold. In addition to the walls and shelves that are made of hardened glass, the barely noticeable shelf support system allows for an unobstructed view of the products inside the display.
The Metos Luxor Double KP12Q vertical display is equipped with six (1070x410 mm) glass shelves, LED-lights and flap glass doors, creating a clear and light frame for products. The display's cold area can be set to between +2°C…+10°C. The display has a cooling system with a fan, which distributes the air evenly across the whole area.
The lower part of the display is made of stainless steel with an anti-fingerprint serigraphy surface. The lower part of the frame masterfully hides the wheels, enabling the easy movability of the display. The three, easily openable, pneumatic flap doors open to 140°. The display has an automatic melting and water evaporating system.
- six glass shelves (1070x410 mm), weight limit 20 kg/per shelf
- cold area +2°…+10°C
- three easily openable, pneumatic flap doors
- LED-lights going lengthwise on the top part of the door
- black, electronic control board with a digital screen made of glass
- HACCP alarm system
- automatic melting and water evaporating system
- stainless steel lower frame, grey silk printed display, hardened glass walls and shelves, stainless steel/PVC shelf support system
- the display works in an environment where the max. temperature is +30°C and the relative humidity is 55%
Delivery includes:
- six glass shelves with support system
Technical specification
General
- Description
- Cold display Metos Luxor Double KP12Q
Dimensions and Capacity
- Product capacity
- 811 litres
- Item width mm
- 1200
- Item depth mm
- 660
- Item height mm
- 1880
- Package volume
- 2.039 m3
- Package dimensions (LxWxH)
- 130x76.5x205 cm
- Net weight
- 320 kg
- Package weight
- 355 kg
Technical information
- Connection power kW
- 0.98
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 50
- Cooling capacity W
- 1120
- Type of the refrigerant
- R452A
