Flight type washers

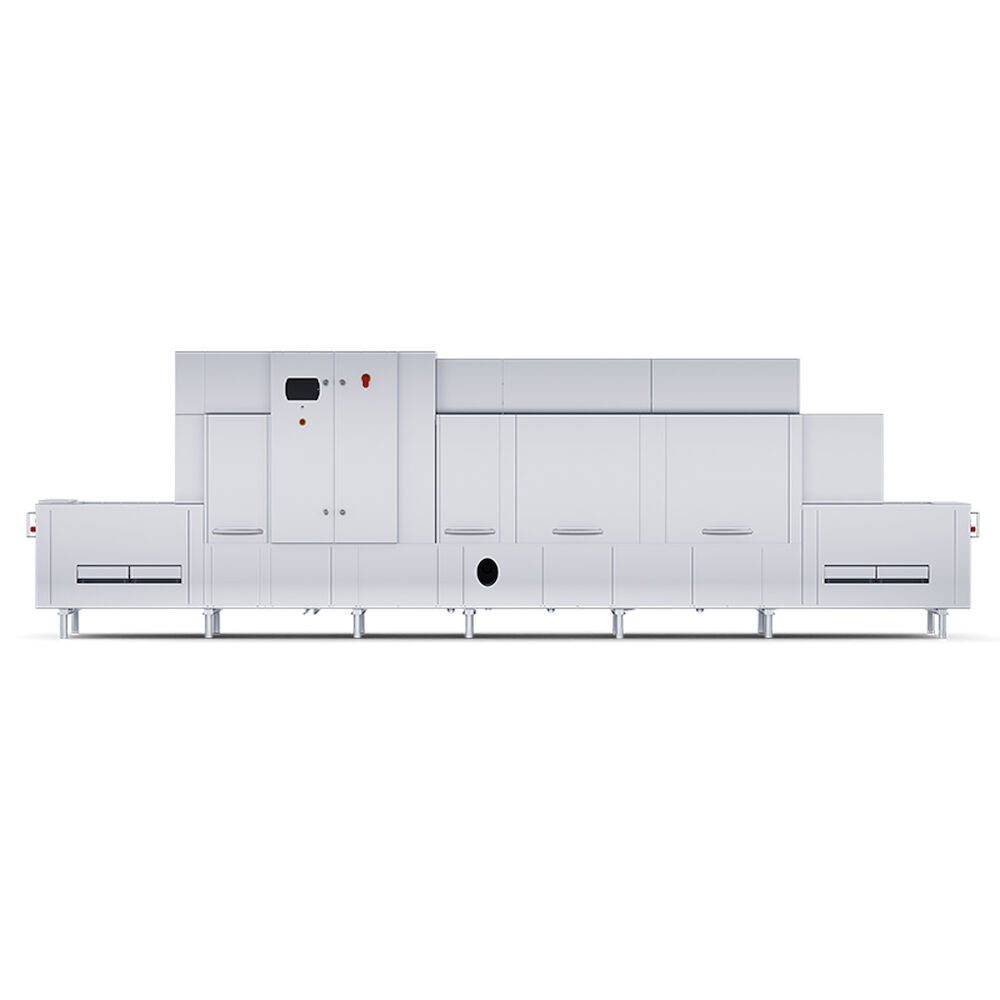

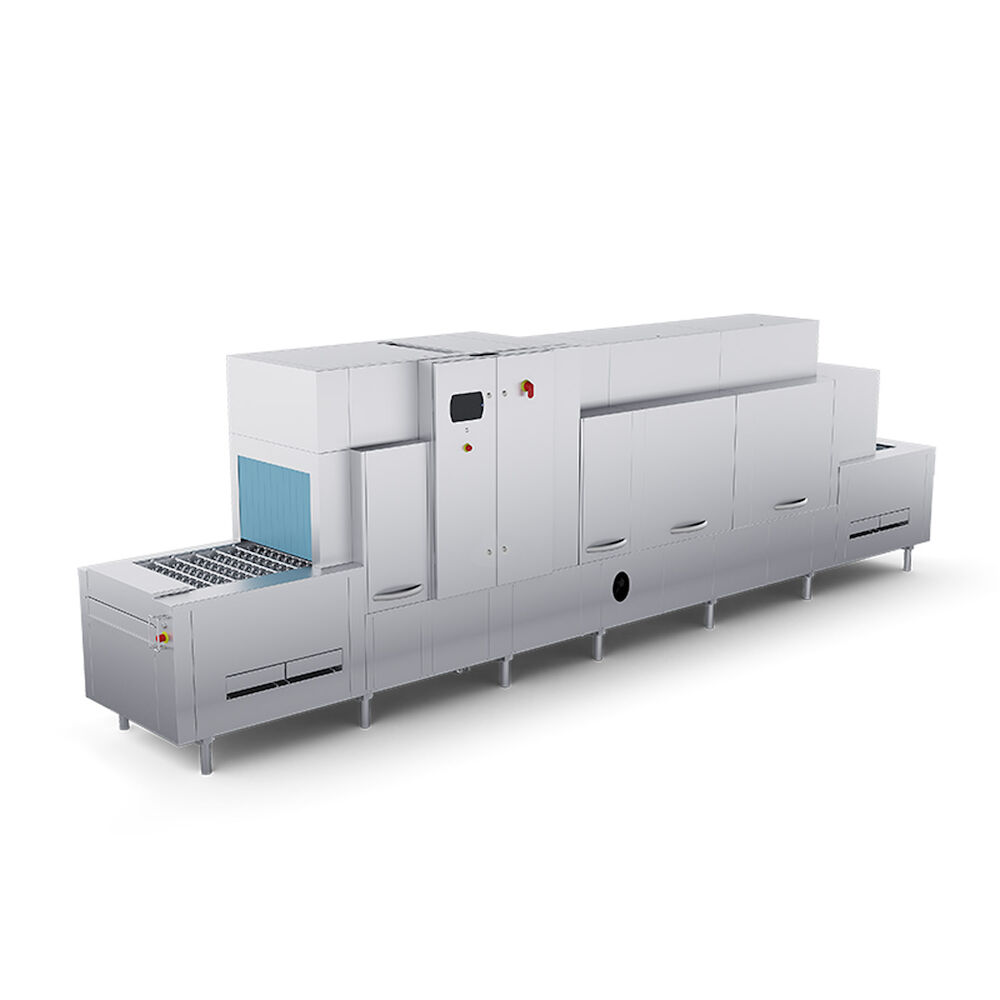

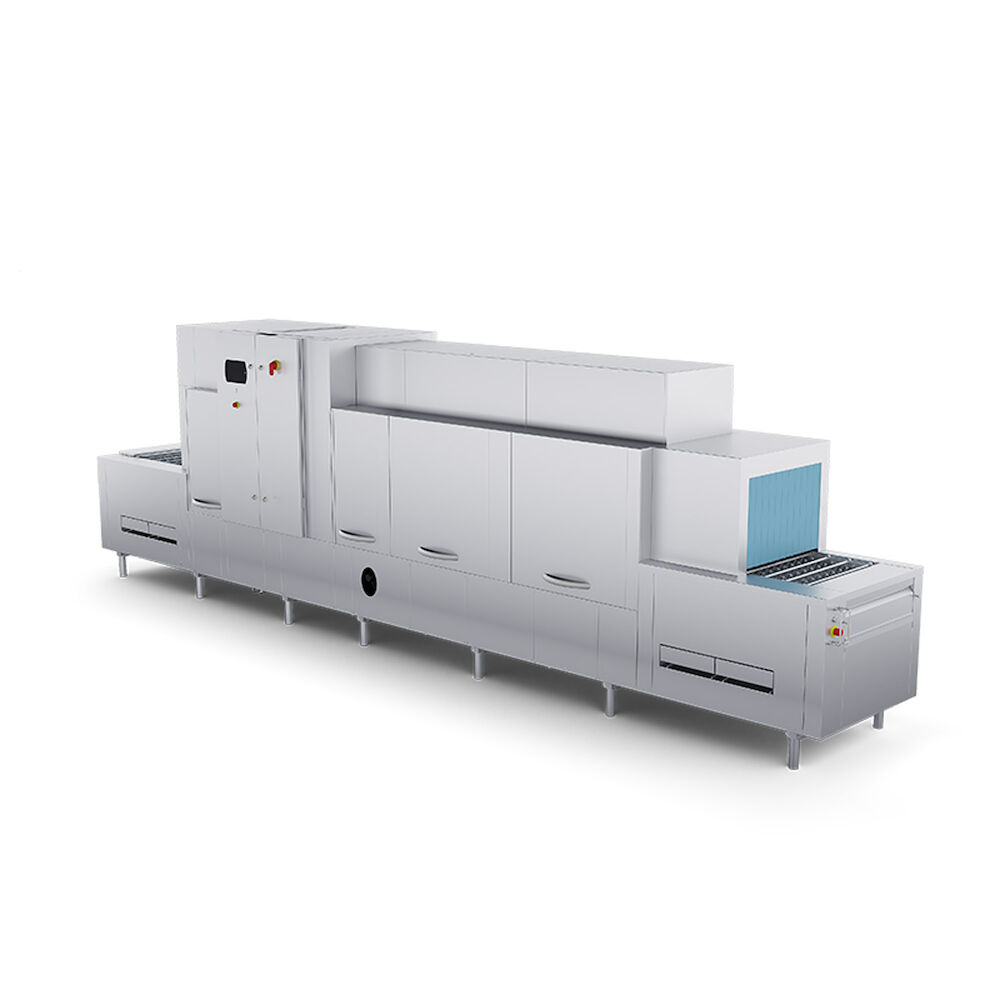

Dishwasher Metos WD-B 700S L-R
Exact price on request
(You can build your order basket)
Full description
Useful conveyor width 614 - 677 mm (depending on conveyor belt). On requests for machine sizes of increased: Connection Power, 39,3kW (standard configuration) Heat Load, 7,1 kW (Sensibel 4,7kW / Latent 2,4kW) STANDARD LENGTH OF DISHWASHER 1. Loading section (WD-B700S) 2. Loading section incl. Pre-rinse PRM (WD-B750S) 3. Prewash 4. Chemical wash 5. Chemical wash, incl. Clean Rinse 6. Double final rinse 7. Drying zone 8. Unloading section Shipping size (LxWxH, standard length) 4 400x1100x1500 mm and 3 800x1100x2100 mm
Technical specification
General
- Description
- Dishwasher Metos WD-B 700S L-R
Dimensions and Capacity
- Product capacity
- plates/hour
- Item width mm
- 7625
- Item depth mm
- 948/1013
- Item height mm
- 1920/2300
- Package volume
- 19.404 m3
- Package dimensions (LxWxH)
- 440x220x190 cm
- Net weight
- 1355 kg
- Package weight
- 1450 kg
Technical information
- Connection power kW
- 39.3
- Fuse Size A
- 80
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Protection rating (IP)
- IP55
- Type of electrical connection
- Fixed
- Electrical conn. height mm
- 1920
- Cold water diam.
- 3/4"
- Cold water flow l/min
- 18
- Cold water conn. height mm
- 330
- Hot water diam.
- 3/4"
- Hot water conn. height mm
- 330
- Drain diameter
- 50
Energy and Consumption
- Water consumption
- water consumption (litres/hour) 190
