Drying zones

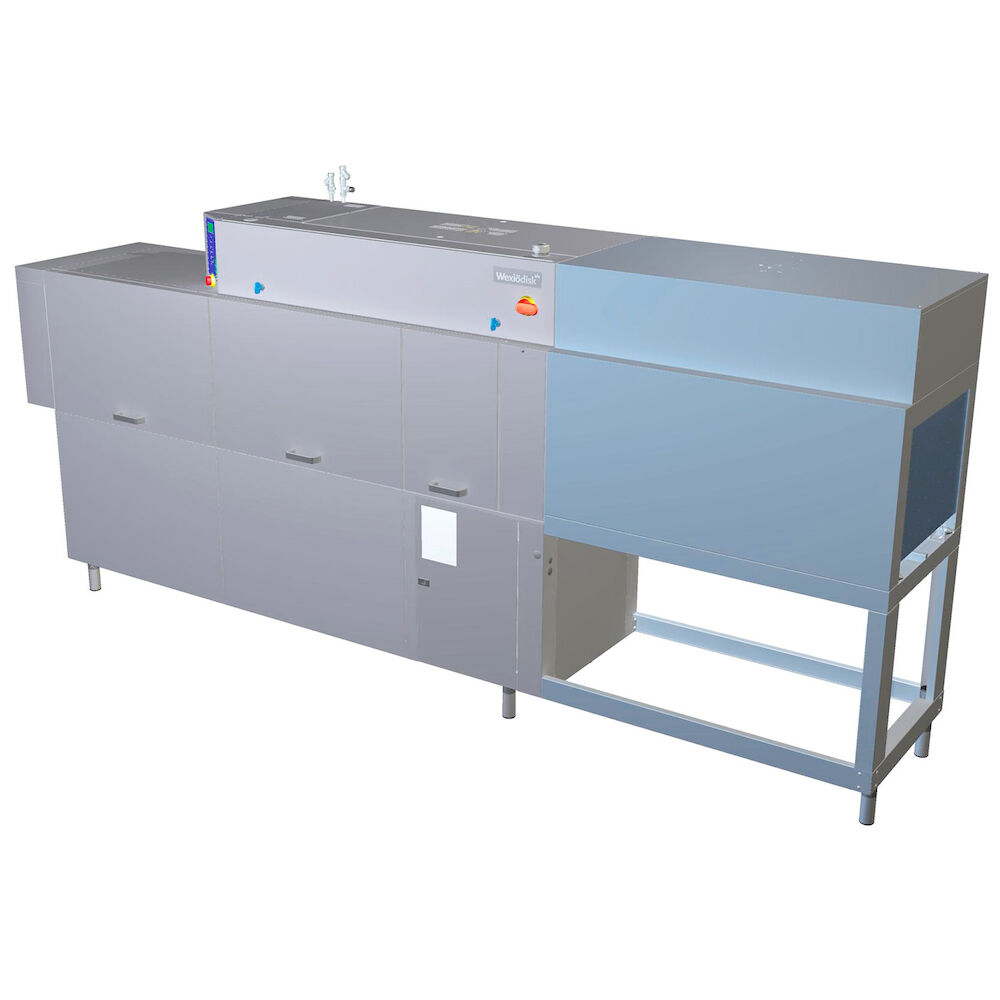

Drying zone Metos WD-T90 R-L 400V3N~
Exact price on request
(You can build your order basket)
Full description
Feeding direction right to left. Suitable for dishes with little heat accumulating capacity
- powerful blow, heat and specially formed air ducts quarantee a perfect drying result
- extremely low energy consumption: element power only 6,6 kW
- energy applied in drying is partly recovered in the heat recovery unit
- zone lenght 900 mm
- stand included
- grind shelf or plane shelf for the stand can be ordered separately (have to be ordered at the same time as the dryer)
Technical specification
General
- Description
- Drying zone Metos WD-T90 R-L 400V3N~
Dimensions and Capacity
- Item width mm
- 900
- Item depth mm
- 695
- Item height mm
- 798
- Package volume
- 0.608 m3
- Package dimensions (LxWxH)
- 90x75x90 cm
- Net weight
- 45 kg
- Package weight
- 60 kg
Technical information
- Connection power kW
- 6.6
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Type of electrical connection
- Semifixed
- Sound level dB
- 62
