Drop-in serving units without upper part
Code: MG4138940

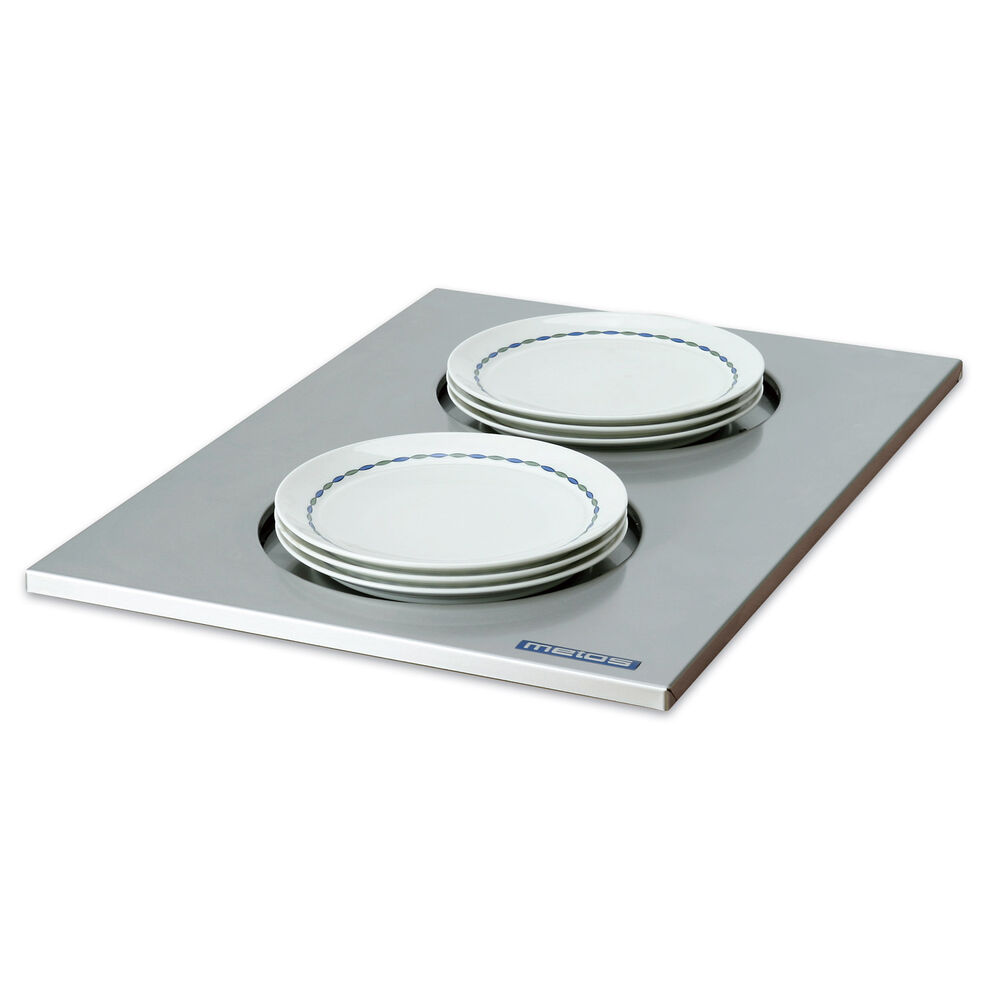

Plate Dispenser Metos Drop-In PD 2x270
Exact price on request
(You can build your order basket)
Full description
Two cylinders, capacity about 130 plates. Max. diameter of plates 270 mm
- drop-in model without side panels
- drop-in hole size 388mm x 585mm
- unit's edge is 15 mm above the furniture's top plate
- recommended height of furniture 900 mm
- easily adjustable spring power according to weight of the plates
Accessories:
Technical specification
General
- Description
- Plate Dispenser Metos Drop-In PD 2x270
Dimensions and Capacity
- Product capacity
- appr. 130 plates
- Item width mm
- 400
- Item depth mm
- 650
- Item height mm
- 650
- Package volume
- 0.264 m3
- Package dimensions (LxWxH)
- 51x70x74 cm
- Net weight
- 18 kg
- Package weight
- 25 kg
Attachments
PDF · PDF2D CAD symbol2D CAD symbol from the Metos source page, 25 KB.
PDF · PDFCAD Face symbolCAD Face symbol from the Metos source page, 35 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 1.4 MB.
PDF · PDF3D CAD symbol3D CAD symbol from the Metos source page, 49 KB.
PDF · PDFRevit / BIM symbolRevit / BIM symbol from the Metos source page, 876 KB.
PDF · SEUser Manual SEUser Manual SE from the Metos source page, 1.5 MB.
PDF · PDFInstallation drawing PDFInstallation drawing PDF from the Metos source page, 125 KB.
PDF · ENProduct sheet ENProduct sheet EN from the Metos source page, 702 KB.
PDF · FIProduct sheet FIProduct sheet FI from the Metos source page, 700 KB.
PDF · SEProduct sheet SEProduct sheet SE from the Metos source page, 701 KB.
PDF · NOProduct sheet NOProduct sheet NO from the Metos source page, 705 KB.
PDF · PDFProduct sheet MARINEProduct sheet MARINE from the Metos source page, 702 KB.
