Inducs Metos Hold-line HO/IN 800-GN
Full description

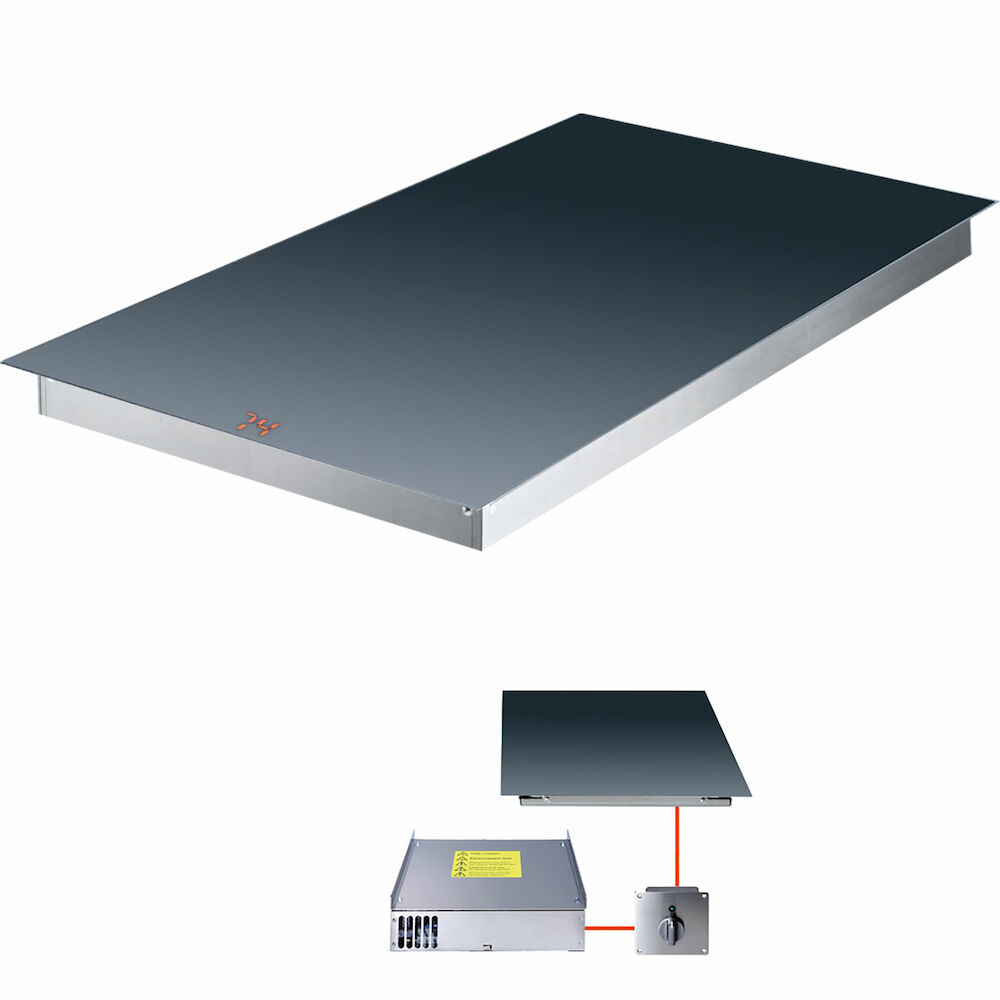

Metos Induction Hold line HO/IN 800-GN Includes induction heating plate, generator and temperature control
- INDUCTION HEATING PLATES Drop in induction plate measures are 520 x 320 x 75 mm. It is suitable for all the containers designed for induction use and especia lly well for GN 1/1- containers. Flat and compact design helps the installation Accurate temperature control thanks to three temperature sensors and six induction coils Large and clear temperature display on the induction plates Strong dark ceramic glass surface stands a heavy use and is easy to clean Energy efficient and safe solution. No additional power output when the containers are removed from induction plates Power is concentrated only into the containers, which reduces the unnecessary heating around the environment Efficiency is 800 Watts / plate
- GENERATOR One efficient generator. Easy to install with plugged cable connection. Please note! The generator requires a powerful ventilation to keep is at the operating temperature
- TEMPERATURE CONTROL One temperature control Stepless temperature adjusting from 50°C - 100°C Real time temperature control maintains the entered temperature to within a degree Control measures the bottom temperature of the containers.
Technical specification
General
- Description
- Inducs Metos Hold-line HO/IN 800-GN
Dimensions and Capacity
- Product capacity
- Plate 1x320x520x75 mm
- Item width mm
- 320
- Item depth mm
- 520
- Item height mm
- 75
- Package volume
- 0.012 m3
- Package dimensions (LxWxH)
- 32x7.1x52 cm
- Net weight
- 13.7 kg
- Package weight
- 13.7 kg
Technical information
- Connection power kW
- 0.8
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50
- Type of electrical connection
- Plug
Features
- Function
- warm
- GN size
- 1/1
