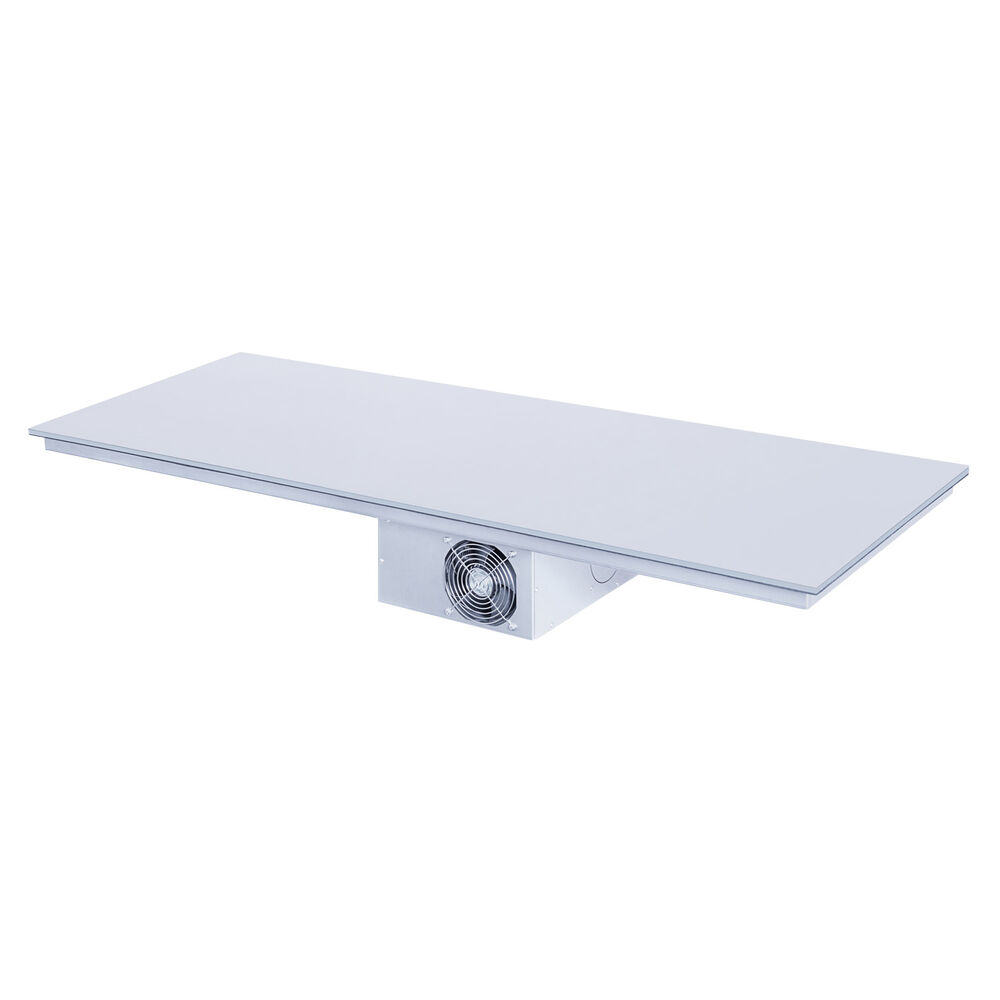

Drop-In Cold plate Metos EC GN4 with Stainless Steel top
Full description
The amazing Metos EC GN4 cold plate is a brilliantly versatile cold GN4/1 drop-in unit, offering unbeatable possibilities for food serving.
The construction comes with a 12 mm aluminium seamless top which is covered with a stainless-steel top, and the drop-in unit style can be upgraded with Dekton or Ceran glass tops. It can go from -5°C to +15°C (at an ambient temperature of +24°C). Just make sure you have enough air flow for the installed unit and you're all set! The cut-out size needs to be 1335x540 mm when installed on a wooden or stainless-steel counter. The cut-out size needs to be 1339x544 mm when installed on a Dekton or stone counter.
- 1 mm thick stainless-steel plate
- SRS Sensor Regulation System enables real-time monitoring and adjustment to maximize efficency
- speed-controlled compressor
- powerful condenser fan
- durable construction
- ready to be plugged in
- controller includes 1 m cable, power cord 1.6 m
Options:
- 4 mm Black or White Ceran glass top
- 12 mm thick Dekton ceramic top plate Sirius (dark grey), Domoos ( matte black) or Zenith (white). Dekton is the most durable material on the market. It is highly resistant to heat, does not absorb liquids or stains and is scratch-resistant.
Technical specification
General
- Description
- Drop-In Cold plate Metos EC GN4 with Stainless Steel top
Dimensions and Capacity
- Product capacity
- GN4/1
- Item width mm
- 1325
- Item depth mm
- 530
- Item height mm
- 190
- Package volume
- 0.254 m3
- Package dimensions (LxWxH)
- 140x62.5x29 cm
- Net weight
- 64 kg
- Package weight
- 74 kg
Technical information
- Connection power kW
- 3
- Fuse Size A
- 16
- Connection voltage V
- 240
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- 54
- Cooling capacity W
- 400
- Type of the refrigerant
- R600a
Features
- Function
- cold
- GN size
- 4/1
- Temperature area ºC
- -5°C...+15°C
- Lighting
- without lighting
- Upper part
- without upper part
Installation
- Installation
- drop-in
