Drop-in serving units with upper part

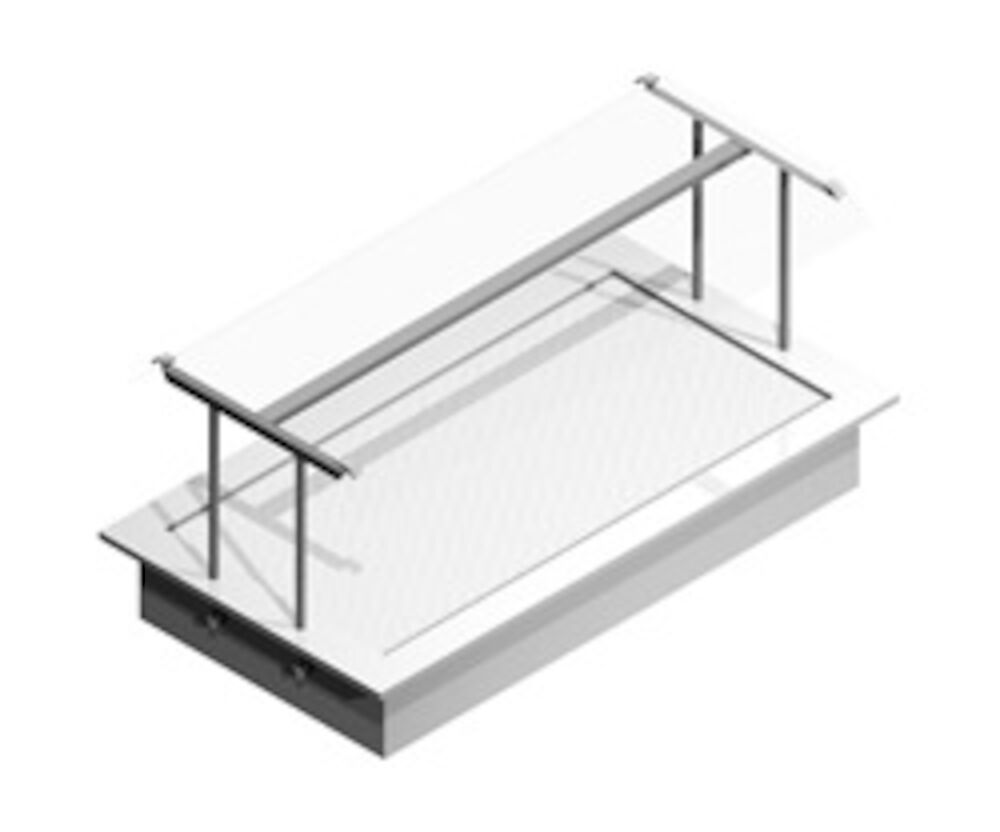

Crushed Ice Basin Metos Nova Plus 1200 LED Drop-In
Exact price on request
(You can build your order basket)
Full description
Insulated basin GN 3/1, depth 160 mm. Structure of the basin totally seamless and all the corners have been rounded for easier cleaning
- there is an outlet valve on the bottom of the basin with hose length of 1 m
- drop-in model without side panels
- basin's edge is 15 mm above the furniture's top plate
- without cold machine
- width of upper shelf 420 mm
- shelf made of hardened glass
- 3000K LED light
- shelf with PLUS glass edge
Technical specification
General
- Description
- Crushed Ice Basin Metos Nova Plus 1200 LED Drop-In
Dimensions and Capacity
- Product capacity
- 3 GN 1/1
- Item width mm
- 1200
- Item depth mm
- 650
- Item height mm
- 230/609
- Package volume
- 0.578 m3
- Package dimensions (LxWxH)
- 125x70x66 cm
- Net weight
- 52 kg
- Package weight
- 52 kg
Technical information
- Connection power kW
- 0.03
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Startup current A
- 0.2
- Protection rating (IP)
- 43
- Type of electrical connection
- Plug
- Drain diameter
- 21/16
Features
- Function
- neutral
- GN size
- 3x1/1
- Lighting
- LED
- Model
- Nova Plus
