Drop-in serving units with upper part

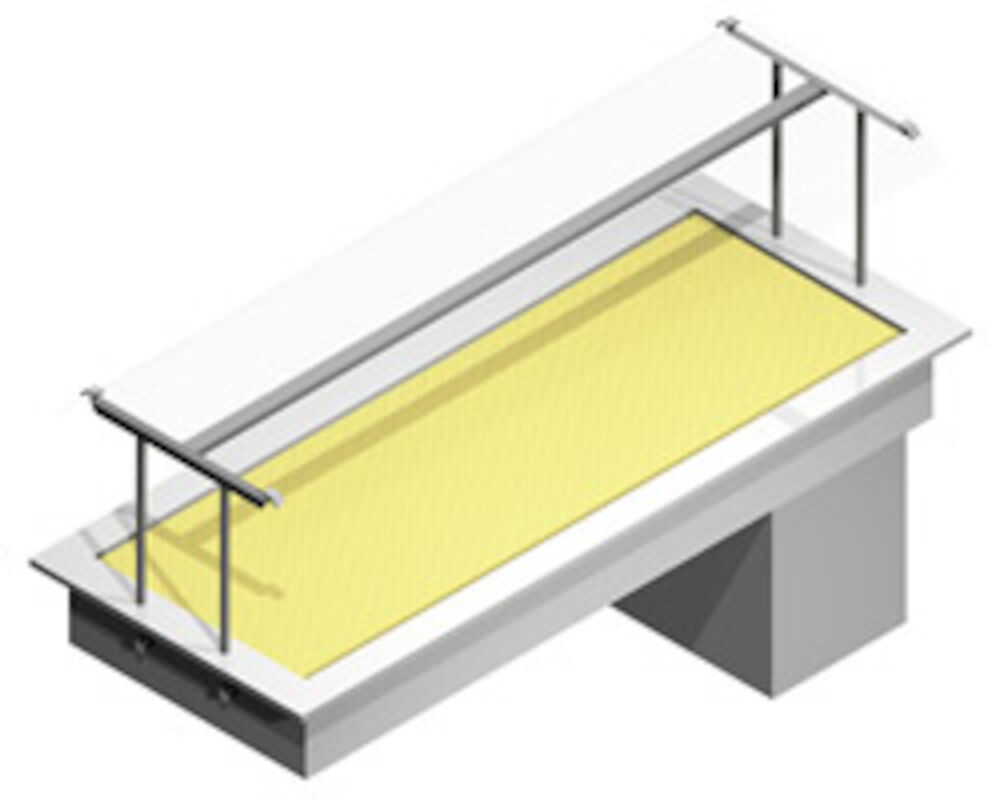

Cold Basin Metos Drop-In CB 1600 Nova Plus LED
Exact price on request
(You can build your order basket)
Full description
Cold basin GN 3/1, depth 160 mm. Drop-in model without side panels
- structure of the basin totally seamless and all the corners have been rounded for easier cleaning
- there is an outlet valve on the bottom of the basin with hose length of 1 m
- basin's edge is 15 mm above the furniture's top plate
- width of upper shelf 420 mm
- 3000K LED light
- shelf made of hardened glass
- shelf with PLUS glass edge
Technical specification
General
- Description
- Cold Basin Metos Drop-In CB 1600 Nova Plus LED
Dimensions and Capacity
- Product capacity
- 4 GN 1/1
- Item width mm
- 1600
- Item depth mm
- 650
- Item height mm
- 640/1019
- Package volume
- 1.236 m3
- Package dimensions (LxWxH)
- 165x70x107 cm
- Net weight
- 87 kg
- Package weight
- 87 kg
Technical information
- Connection power kW
- 0.33
- Fuse Size A
- 10
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Startup current A
- 2
- Protection rating (IP)
- 43
- Type of electrical connection
- Plug
- Drain diameter
- 21/16
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 110
Features
- Function
- cold
- GN size
- 4x1/1
- Lighting
- LED
- Model
- Nova Plus
