Drop-in serving units with upper part

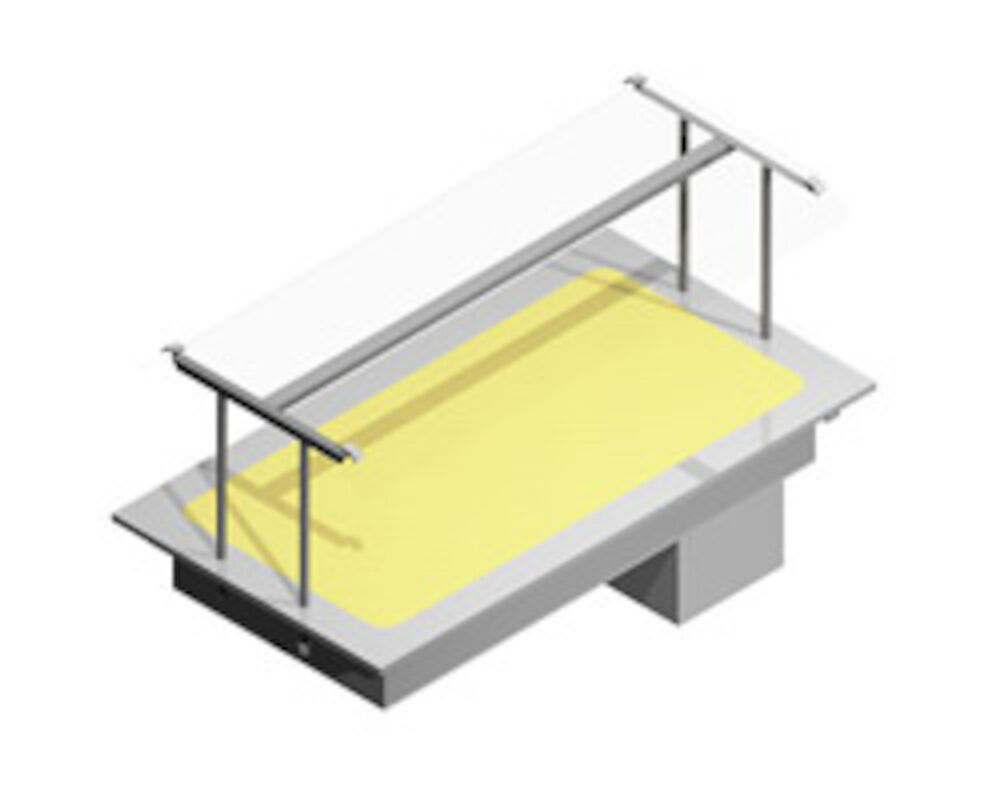

Bain Marie Metos Drop-In BM 1200 Nova Plus LED
Exact price on request
(You can build your order basket)
Full description
Bain marie GN 3/1, depth 160 mm. Structure of the basin totally seamless and all the corners have been rounded for easier cleaning
- there is an outlet valve on the bottom of the basin with hose length of 1 m
- drop-in model without side panels
- basin's edge is 15 mm above the furniture's top plate
- temperature's adjusting with thermostat
- width of upper shelf 420 mm
- shelf made of hardened glass
- 3000K LED light
- shelf with PLUS glass edge
Technical specification
General
- Description
- Bain Marie Metos Drop-In BM 1200 Nova Plus LED
Dimensions and Capacity
- Product capacity
- 3 GN 1/1
- Inside measures mm
- 1200×650×355/734 mm
- Item width mm
- 1200
- Item depth mm
- 650
- Item height mm
- 355/734
- Package volume
- 0.954 m3
- Package dimensions (LxWxH)
- 125x70x109 cm
- Net weight
- 48 kg
- Package weight
- 48 kg
Technical information
- Connection power kW
- 1.7
- Fuse Size A
- 10
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Startup current A
- 7.3
- Protection rating (IP)
- IP43
- Type of electrical connection
- Plug
- Drain diameter
- 21/16
Features
- Function
- warm
- GN size
- 3x1/1
- Power range kW
- 1.7
- Lighting
- LED
- Upper part
- with upper part
- Model
- Nova Plus
Installation
- Installation
- drop-in
