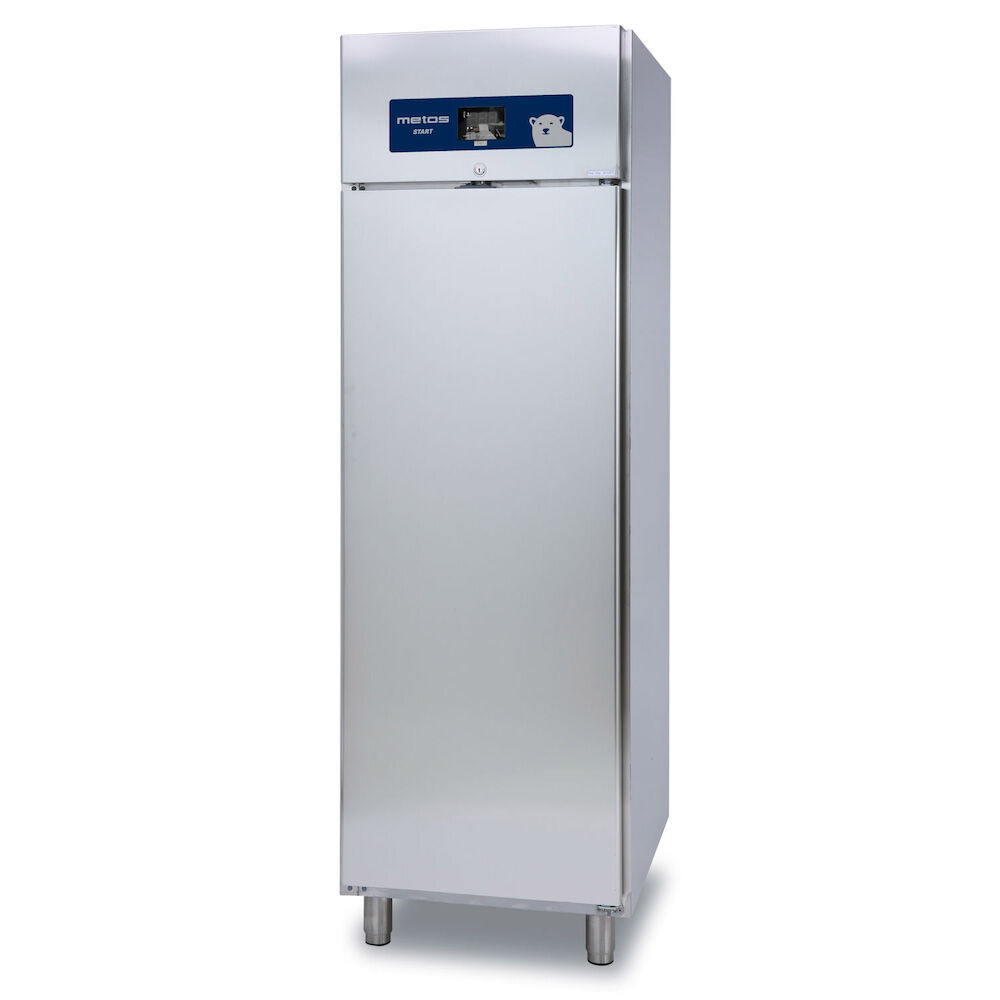

Deep chiller and freezer Metos EVJ800 MDF50L
Full description
Deep freezer Metos Start MDF50L is intended for fast chilling and freezing of hot food. Refrigerated foods can be transferred directly to GN containers for cabinet shelving.
Metos Start MDF50L has two functions: deep chilling and deep freezing. Its cooling capacity: deep chilling: cools 5xGN1/1 dishes of 25-28 kg from + 65°C to + 6°C in - 240 minutes, or 16-18 kg + 65°C to +10°C in 120 minutes
deep freezing: cools 5xGN1/1 dishes of 30-42 kg from +0...-18C in 12 hours. (aforementioned capacity is a guideline and cannot be achieved with all food items or under all circumstances). The machine automatically transfers to storage model after the end of the cooling process and then cabinet can also be used as a normal cold cabinets.
The cabinet has five GN1 / 1-rated shelving slide pairs. slides are easily detached for transfer and cleaning of the cabinet, setting distance in 50 mm. Shelves are available as an accessory.
It is easy to clean the unit with its stainless steel construction, rounded inner pockets and easy-to-detach leads. In addition, the unit is equipped with automatic defrosting and evaporation of mildew, as well as the possibility of manually starting defrosting.
The device has a left-hand door with a sealant that is easily replaceable. The lockable, self-closing door remains open when opened at a 90° angle. The cabinet is located at the top of the cabinet. The electronic, membrane-protected thermostat features a large, clear and easy-to-use display. The display shows alarm information about possible setpoint temperature and overrun.
- left-hand lockable door
- EVJ-815 electronic controller
- 5 shelf slides pairs for GN1/1-containers
- slides are easily detached
- stainless steel inner and outer lining
- rounded inner corners
- CFC- and HCFC-polyurethane insulation
- stainless steel adjustable feet
- automatic defrosting and evaporation of drain water
- air-condensed
- refrigerant R290
ACCESSORIES (ordered separately):
- additional slide pair
- shelves
- foot pedal
Technical specification
General
- Description
- Deep chiller and freezer Metos EVJ800 MDF50L
Dimensions and Capacity
- Product capacity
- 30-42kg / 12h, +0C -> -18C
- Inside measures mm
- 450x580x1370
- Item width mm
- 600
- Item depth mm
- 700
- Item height mm
- 2080
- Package volume
- 1.07 m3
- Package dimensions (LxWxH)
- 76x64x220 cm
- Net weight
- 110 kg
- Package weight
- 125 kg
Technical information
- Connection power kW
- 1.26
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50
- Startup current A
- 6.5
- Type of the refrigerant
- R290
- Quantity of refrigerant g
- 150
- Remarks (refrigeration)
- R404A unitl 10/2017
Features
- Raw material
- stainless steel
- Hinge location
- left
- GN size
- 1/1
- Number of chambers
- 1
- Shelf size mm
- 325x530
- Lighting
- LED
- Cooling unit
- With cooling unit
- Defrosting
- automatic
- Temperature probe
- No
- Fill in trolleys
- No
- Glass door
- No
