Cutters
Code: MG4139317

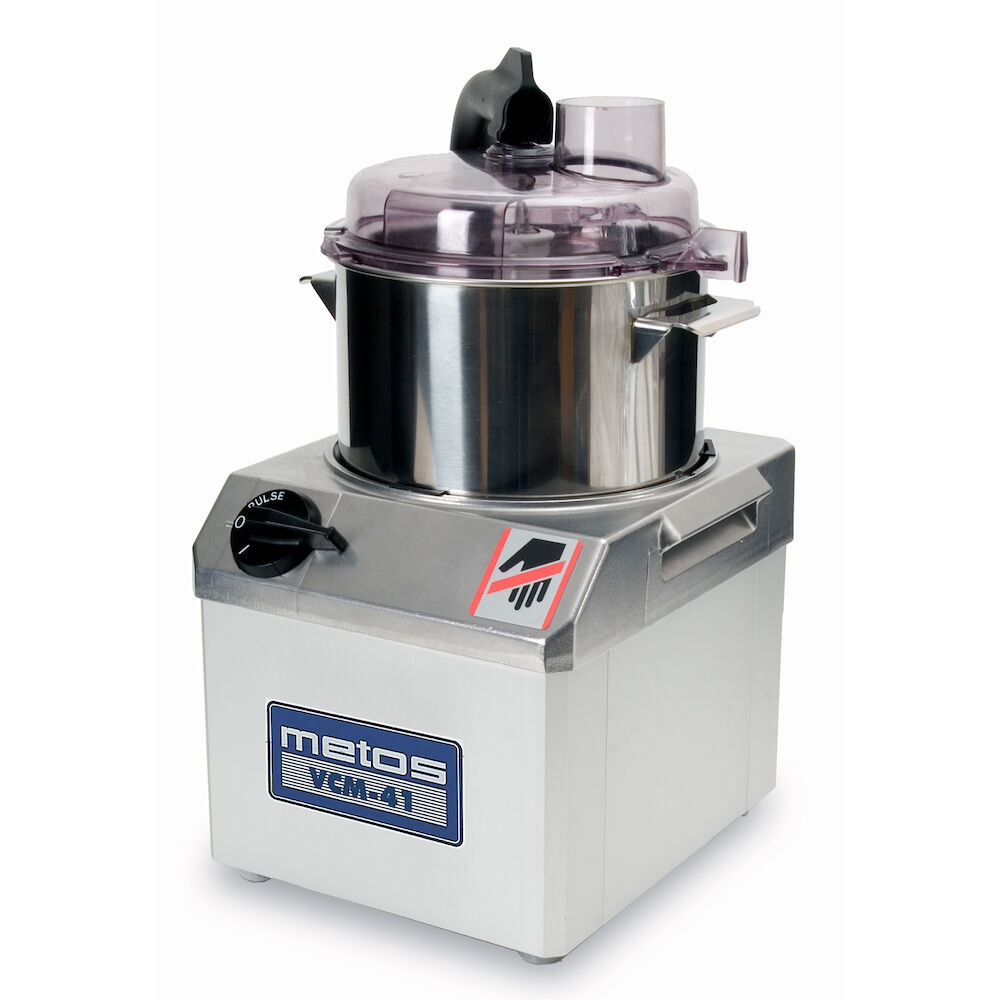

Cutter Metos VCM-41
Exact price on request
(You can build your order basket)
Full description
Table model. Machine housing: anodized and polished aluminium alloy, bowl: stainless steel, lid: polycarbonate, rotor: acetal, blades: high grade steel
- bowl : gross capacity 4 l, netto 1,6 l
- blade speed 1500 rpm and pulse function
- rotor with cutting blades
Technical specification
General
- Description
- Cutter Metos VCM-41
Dimensions and Capacity
- Product capacity
- 1,6 ltres
- Capacity
- 0,5-2,5 kg/minute, 4 litres bowl
- Item width mm
- 260
- Item depth mm
- 290
- Item height mm
- 440
- Package volume
- 0.064 m3
- Package dimensions (LxWxH)
- 35x35x52 cm
- Net weight
- 17.6 kg
- Package weight
- 19 kg
Technical information
- Connection power kW
- 0.57
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50/60
- Type of electrical connection
- Plug
Features
- Cleaning
- machine washable,hand wash
- Power range kW
- 0.55
- Speed rpm
- 1500
Installation
- Installation
- table model
Attachments
