Convection ovens and roasting ovens
Code: MG3751975

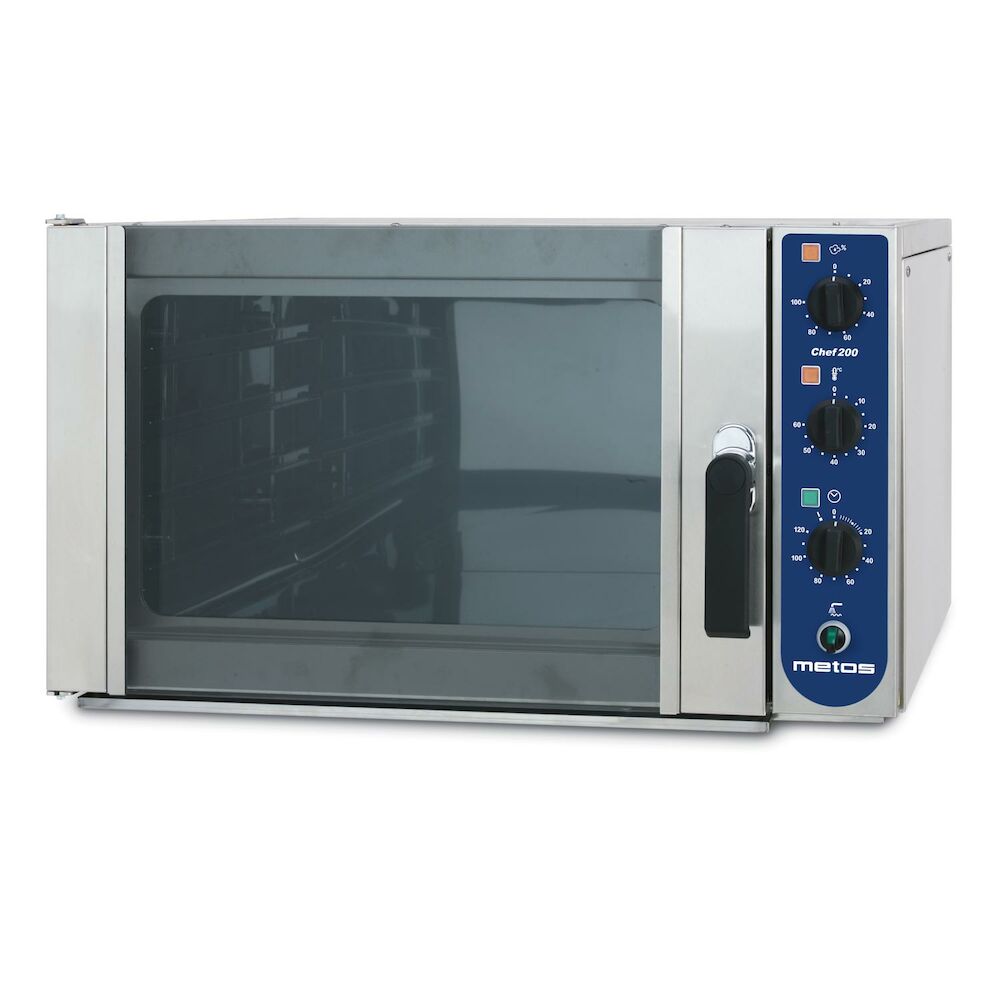

Proving cabinet Metos Chef 200 - 230V1N~
Exact price on request
(You can build your order basket)
Full description
Cabinet, door and external surface stainless steel. Temperature: +20-60°C
- timer 0-120 min or continuous
- pre-heating time (35°C): 20 min
- humidity level can be adjusted
- water pool filling by turning switch
- can be installed separately or one on the other with Metos Chef 22, 24 and 5 ovens Accessories:
- rack for baking trays: 5 pairs of rails, 450x600 mm
Technical specification
General
- Description
- Proving cabinet Metos Chef 200 - 230V1N~
Dimensions and Capacity
- Product capacity
- 4x GN2/1
- Capacity
- 8xGN1/1 or 4xGN2/1
- Item width mm
- 800
- Item depth mm
- 800
- Item height mm
- 460
- Package volume
- 0.539 m3
- Package dimensions (LxWxH)
- 90x95x63 cm
- Net weight
- 47 kg
- Package weight
- 64 kg
Technical information
- Connection power kW
- 0.8
- Fuse Size A
- 10
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50/60
- Startup current A
- 3.5
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 250
- Cold water diam.
- 3/4"
- Cold water conn. height mm
- 25
Features
- Raw material
- Stainless steel
- Operation type
- electromechanical
- Hinge location
- left
- Cleaning
- hand wash
- GN size
- 1/1 / 2/1
- Temperature area ºC
- 20-60
- Max temperature ºC
- 60
- Power range kW
- 0.8
- Temperature probe
- No
- Fill in trolleys
- No
- Hand shower
- No
- Descaling
- No
- Humidification
- Yes
- Timer
- Yes
Energy and Consumption
- Power type
- electric
Attachments
PDF · PDF2D CAD symbol2D CAD symbol from the Metos source page, 69 KB.
PDF · PDFCAD Face symbolCAD Face symbol from the Metos source page, 64 KB.
PDF · ENUser Manual ENUser Manual EN from the Metos source page, 3.9 MB.
PDF · PDF3D CAD symbol3D CAD symbol from the Metos source page, 161 KB.
PDF · FIUser Manual FIUser Manual FI from the Metos source page, 2.9 MB.
PDF · PDFRevit / BIM symbolRevit / BIM symbol from the Metos source page, 1.1 MB.
PDF · SEUser Manual SEUser Manual SE from the Metos source page, 2.9 MB.
PDF · PDFInstallation drawing PDFInstallation drawing PDF from the Metos source page, 270 KB.
PDF · ENProduct sheet ENProduct sheet EN from the Metos source page, 613 KB.
PDF · FIProduct sheet FIProduct sheet FI from the Metos source page, 609 KB.
PDF · SEProduct sheet SEProduct sheet SE from the Metos source page, 611 KB.
PDF · NOProduct sheet NOProduct sheet NO from the Metos source page, 612 KB.
PDF · PDFWiring DiagramWiring Diagram from the Metos source page, 54 KB.
PDF · PDFCE and Conformity DeclarationCE and Conformity Declaration from the Metos source page, 1.1 MB.
PDF · PDFInstallation drawing Marine PDFInstallation drawing Marine PDF from the Metos source page, 169 KB.
PDF · DWGInstallation drawing Marine DWGInstallation drawing Marine DWG from the Metos source page, 328 KB.
PDF · PDFCE and Conformity DeclarationCE and Conformity Declaration from the Metos source page, 2.2 MB.
PDF · PDFWiring DiagramWiring Diagram from the Metos source page, 120 KB.
