Chain conveyor curves

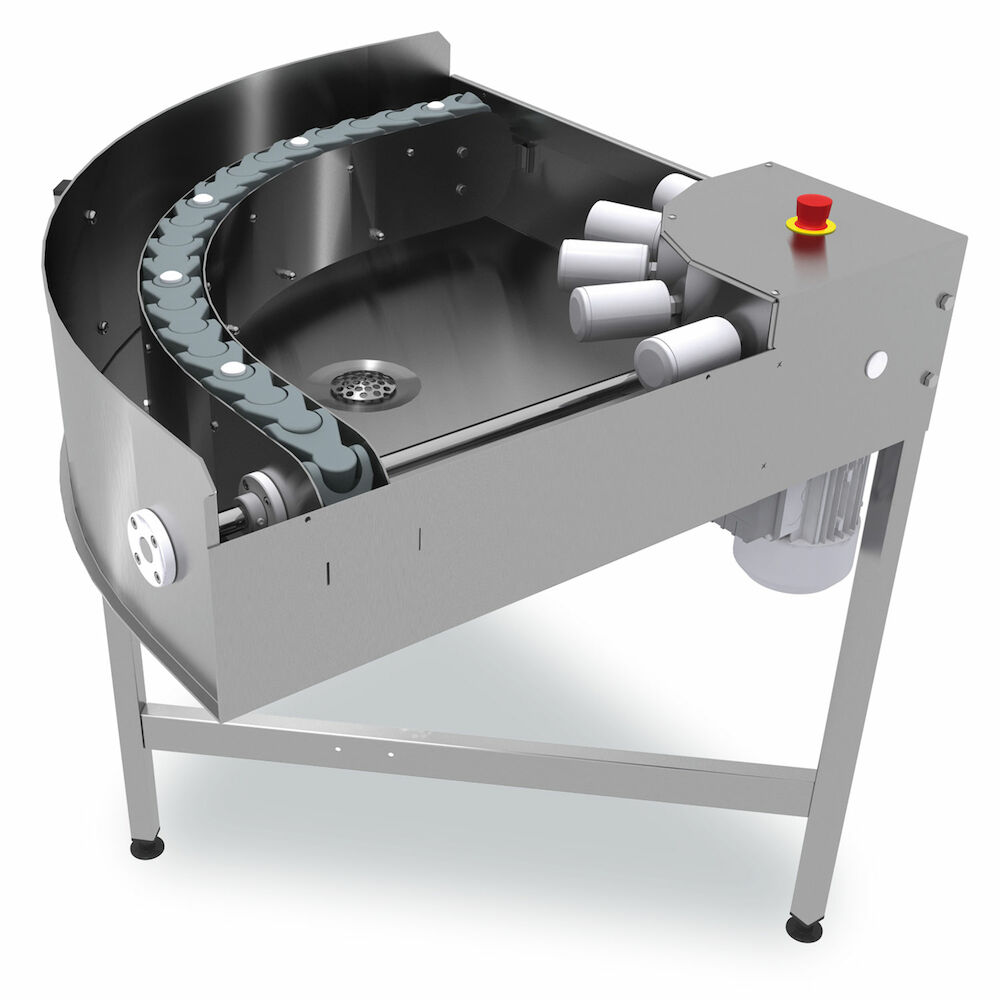

Motor-powered turn track L-R Metos WD-C 90°
Exact price on request
(You can build your order basket)
Full description
Motor-powered turn 90° track made entirely from stainless steel. Frame made from non-corrosive, 30x30 mm square tubing with adjustable feet. Suitable for all 50x50 cm washing baskets. The design means that the baskets are loaded fromleft to right using a plastic drive chain. Equipped with an emergency stop.
The turn track is connected to the machine’s outfeed side, either directly to the machine or to a straight section placed between the machine and the track. The turn track can also be placed on the infeed side.
Technical specification
General
- Description
- Motor-powered turn track L-R Metos WD-C 90°
Dimensions and Capacity
- Item width mm
- 780
- Item depth mm
- 780
- Item height mm
- 890±25
- Package volume
- 0.621 m3
- Package dimensions (LxWxH)
- 80x80x97 cm
- Net weight
- 45 kg
- Package weight
- 50 kg
Technical information
- Connection power kW
- 0.12
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Protection rating (IP)
- IP65
- Type of electrical connection
- Semifixed
