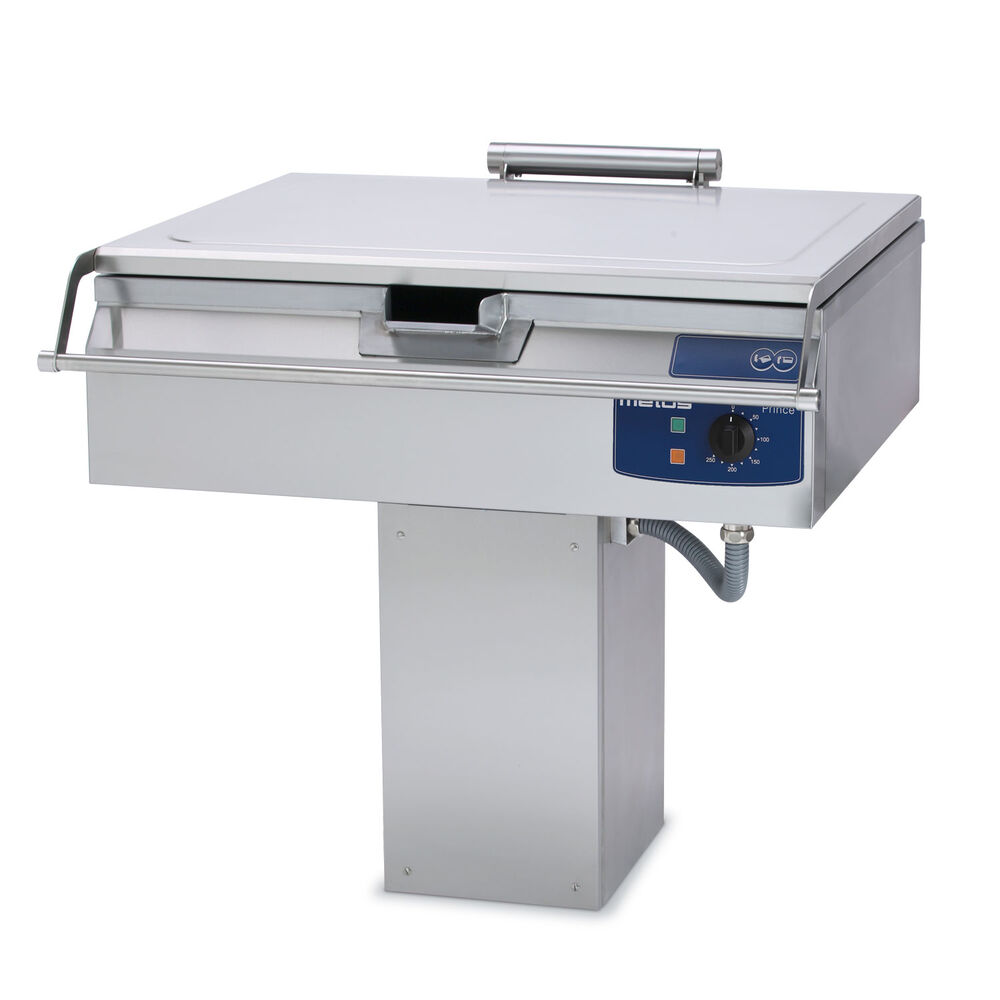

Bratt pan Metos Prince 85L (pan 790x530x90 mm)
Full description
Effective and user-friendly Metos Prince 85L bratt pan is equipped with electrical tilting, which makes emptying of the pan more ergonomic and effortless. The sturdy bratt pan is fixed mounted onto the floor. The seamless surfaces and rounded corners make's the pan easy to clean.
L = frying zone 790x530x90 mm.
The frying surface is made of thick steel which stores heat extremely well throughout the whole frying area. The volume of the pan area is 37 liters. The temperature is adjustable between +50°C... +250°C. The preheating time is 11 minutes (+200°C).
The bratt pan has a strong electrical tilting. Tilting cannot be started if the lid is closed or the water filling (option) is in progress. The heating elements will be switched off when the pan is tilted and will be switched on again when the pan is back in the horizontal position.
- balanced lid
- stainless steel (18/8) structure, external surfaces and lid
- uniform stainless steel frying area
- electro mechanical control
- overheating protection
FACTORY OPTIONS (to be ordered together with the bratt pan):
- height adjustment 800-950 mm
- water tap
Technical specification
General
- Description
- Bratt pan Metos Prince 85L (pan 790x530x90 mm)
Dimensions and Capacity
- Item width mm
- 850
- Item depth mm
- 818
- Item height mm
- 960
- Package volume
- 1.253 m3
- Package dimensions (LxWxH)
- 108x100x116 cm
- Net weight
- 134 kg
- Package weight
- 154 kg
Technical information
- Connection power kW
- 10.5
- Fuse Size A
- 16
- Connection voltage V
- 400/230
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Startup current A
- 15.3
- Protection rating (IP)
- X3
- Type of electrical connection
- Fixed
- Electrical conn. height mm
- 350
Features
- Raw material
- Stainless steel
- Type
- electric
- Operation type
- electromechanical
- Cleaning
- hand wash
- Temperature area ºC
- 50-250
- Pan volume L
- 37
- Tilting
- electric
- Temperature probe
- No
- Oil filtering
- No
- Timer
- No
- Model
- Prince
Installation
- Installation
- floor model
Energy and Consumption
- Power type
- electric
