Bratt Pan Metos Futura HD 150L
Full description

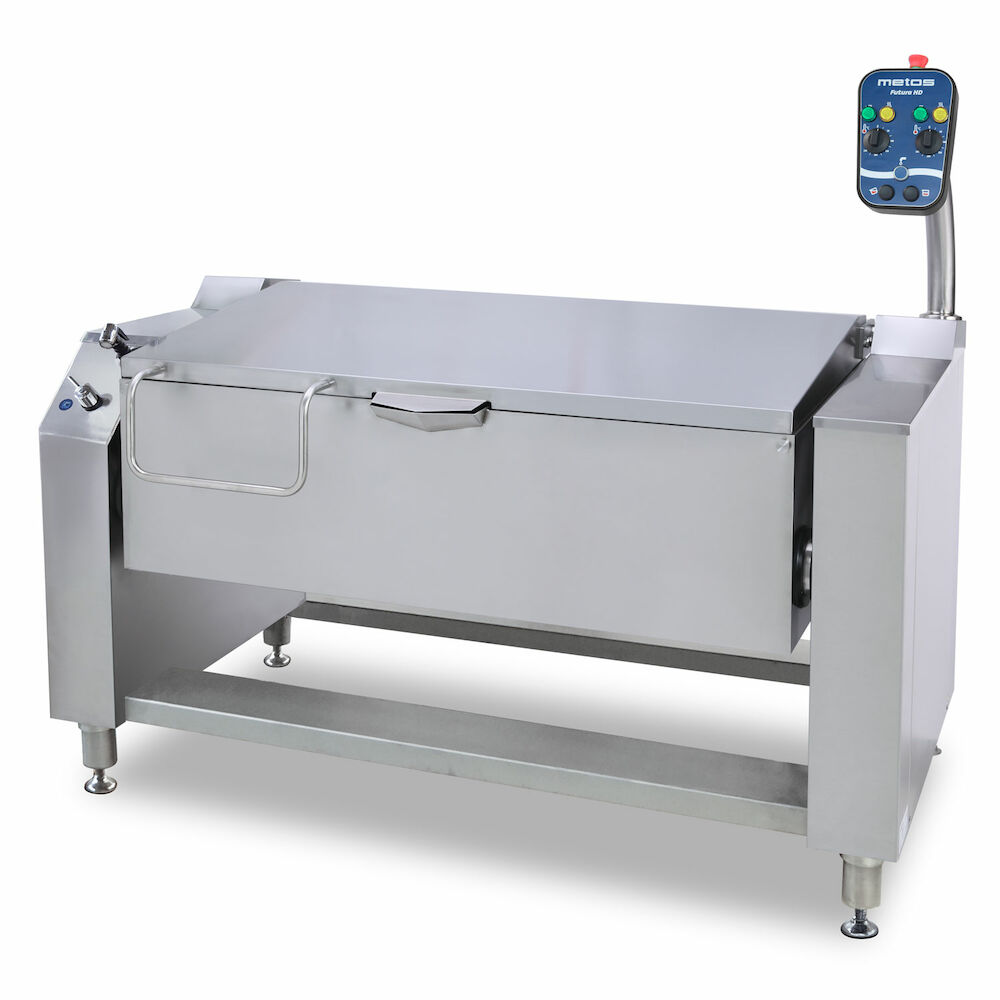

The Metos Futura HD 150L frying pan is designed for frying and cooking in large capacity kitchens and is a good choice for demanding use. Two sturdy legs make the pan stable; and motorised tilting, easy cleaning and good safety features make the pan very easy to use. The pan needs to be fixed into the floor.
The Metos Futura HD 150 L frying pan has two frying sections with an adjustable temperature of 50 °C... 250°C. The aluminium core is surrounded by heating elements enabling quick heating of the pan. The frying area is 0.59 m² and its depth is 273 mm. Three GN1/1 dishes may be placed on the bottom of the frying pan. Double walls ensure good insulation.

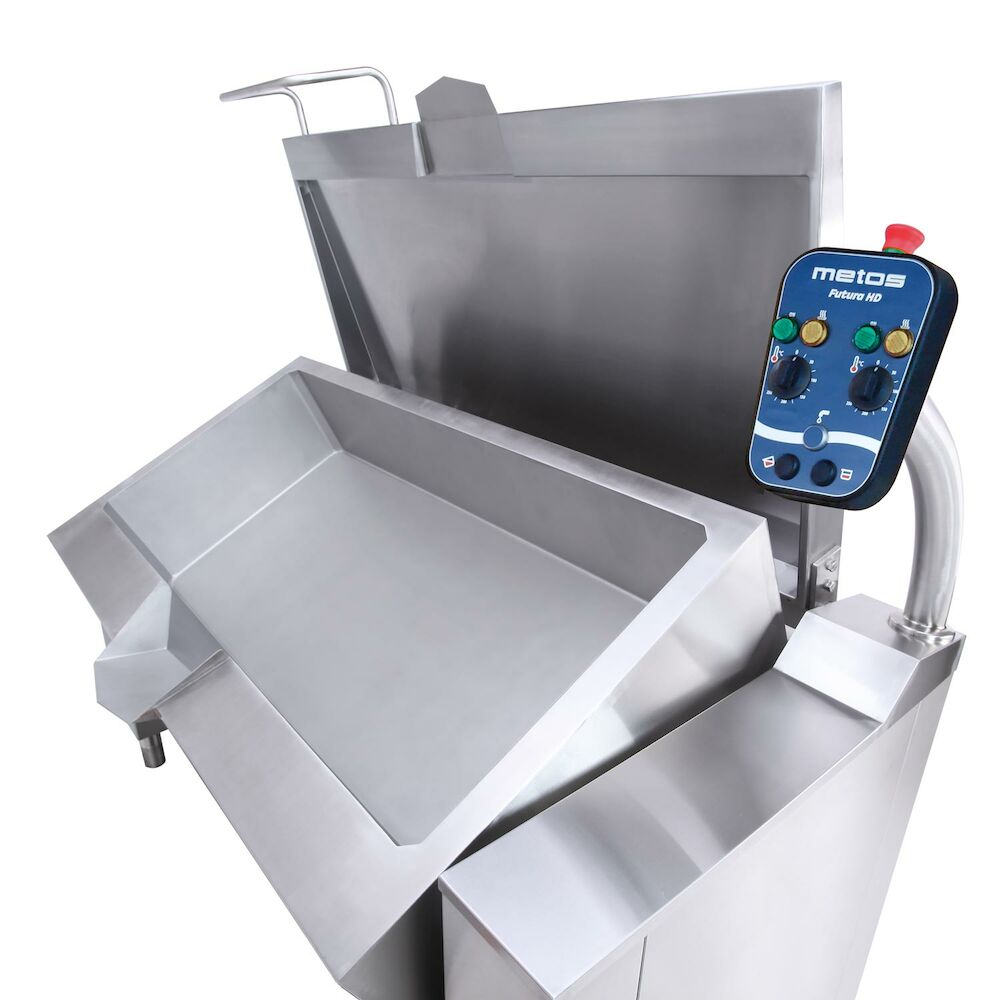

The frying pan is equipped with motorised tilting. The tilting function cannot be used when the lid is on, or when the pan is being filled with water The tilt angle for emptying the pan is 70° and the largest tilt angle is 90° The distance between the pan's pouring spout and the floor is 550 mm (with a tilt angle of 68°).
- temperature of the two frying sections can be adjusted individually
- balanced and insulated cover
- continuous and seamless stainless steel frying surface
- stainless steel structure

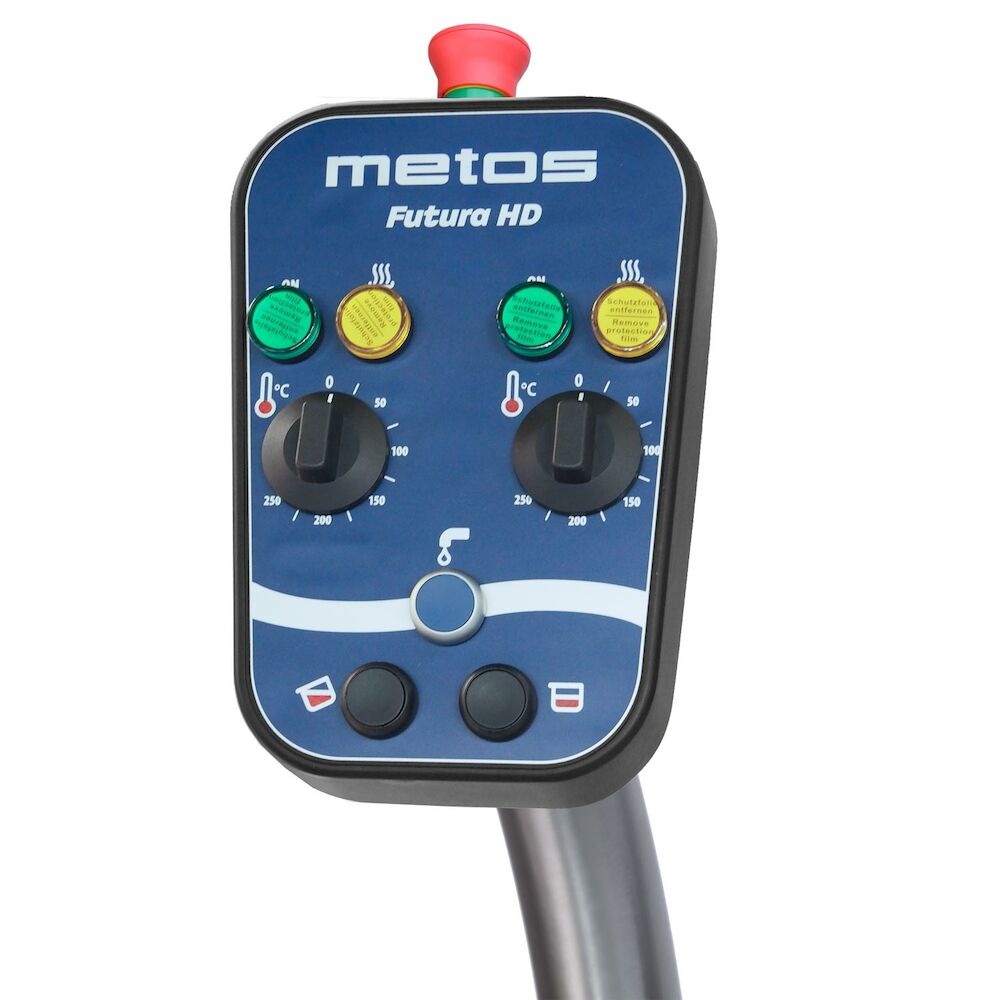

- elevated control panel in the right foot
- electromechanical control
- emergency stop switch
- overheating protection
OPTIONS
- water filling tap
- hand shower
ACCESSORIES (ordered separately)
- strainer plate
Technical specification
General
- Description
- Bratt Pan Metos Futura HD 150L
Dimensions and Capacity
- Product capacity
- 150 litres
- Item width mm
- 1561
- Item depth mm
- 955
- Item height mm
- 1564/1804
- Package volume
- 2.56 m3
- Package dimensions (LxWxH)
- 160x100x160 cm
- Net weight
- 360 kg
- Package weight
- 386 kg
Technical information
- Connection power kW
- 27.6
- Fuse Size A
- 50
- Connection voltage V
- 400/230
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Startup current A
- 40
- Protection rating (IP)
- X4
- Cold water diam.
- 3/4
- Cold water min pressure kPa
- 20
- Cold water max pressure kPa
- 800
- HACCP-connectivity
- NO
- Heat load sensitive W
- 12420
- Heat load latent W
- 11040
Features
- Type
- electric
- Operation type
- electromechanical
- Cleaning
- hand wash
- Top material type
- stainless steel
- Tilting
- electric
- Temperature probe
- No
- Oil filtering
- No
- Timer
- No
- Model
- Futura HD
Installation
- Installation
- floor model
Energy and Consumption
- Power type
- electric
