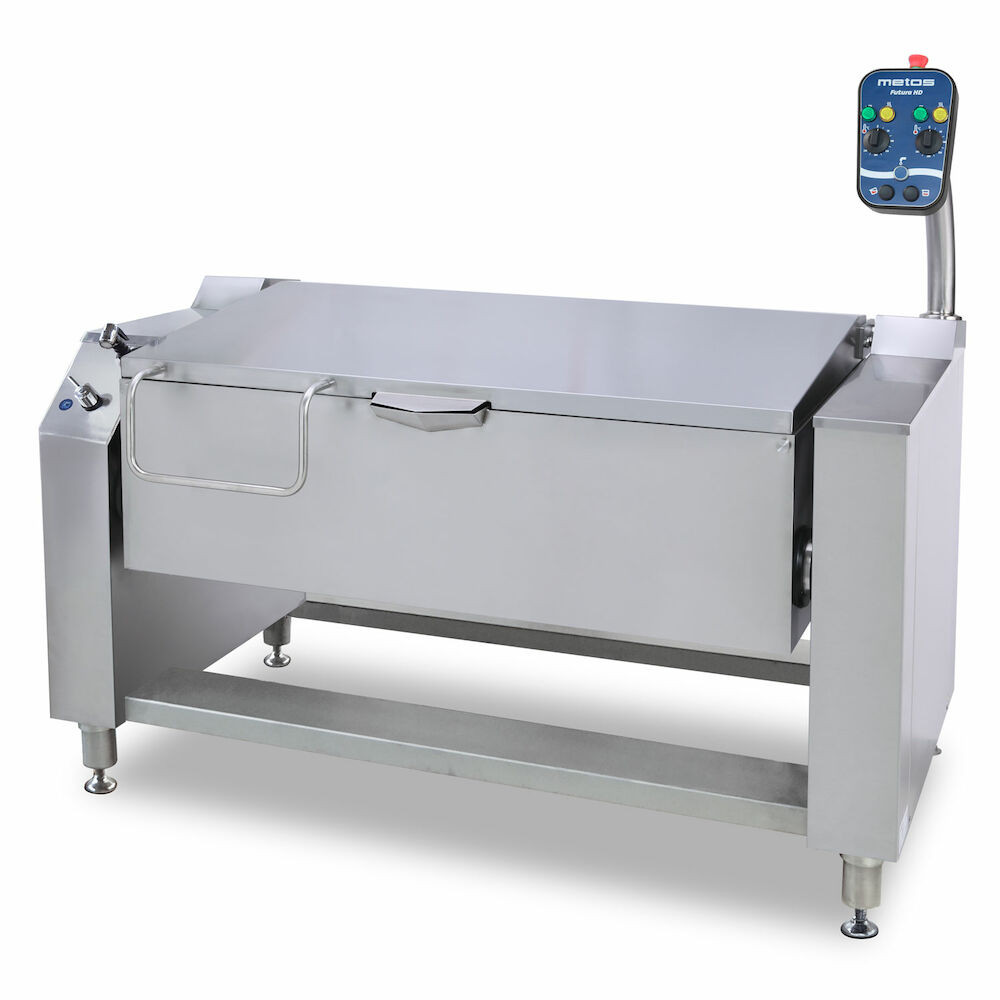

Bratt Pan Metos Futura HD 100L
Full description
The Metos Futura HD 100L frying pan is designed for frying and cooking in large capacity kitchens and is a good choice for demanding use. Two sturdy legs make the pan stable; and motorised tilting, easy cleaning and good safety features make the pan very easy to use. The pan needs to be fixed into the floor.
The Metos Futura HD 100 L frying pan has a single frying section with an adjustable temperature of 50 °C... 250°C. The aluminium core is surrounded by heating elements enabling quick heating of the pan. The frying area is 0.4 m² and its depth is 273 mm. Two GN1/1 dishes may be placed on the bottom of the frying pan. Double walls ensure good insulation.

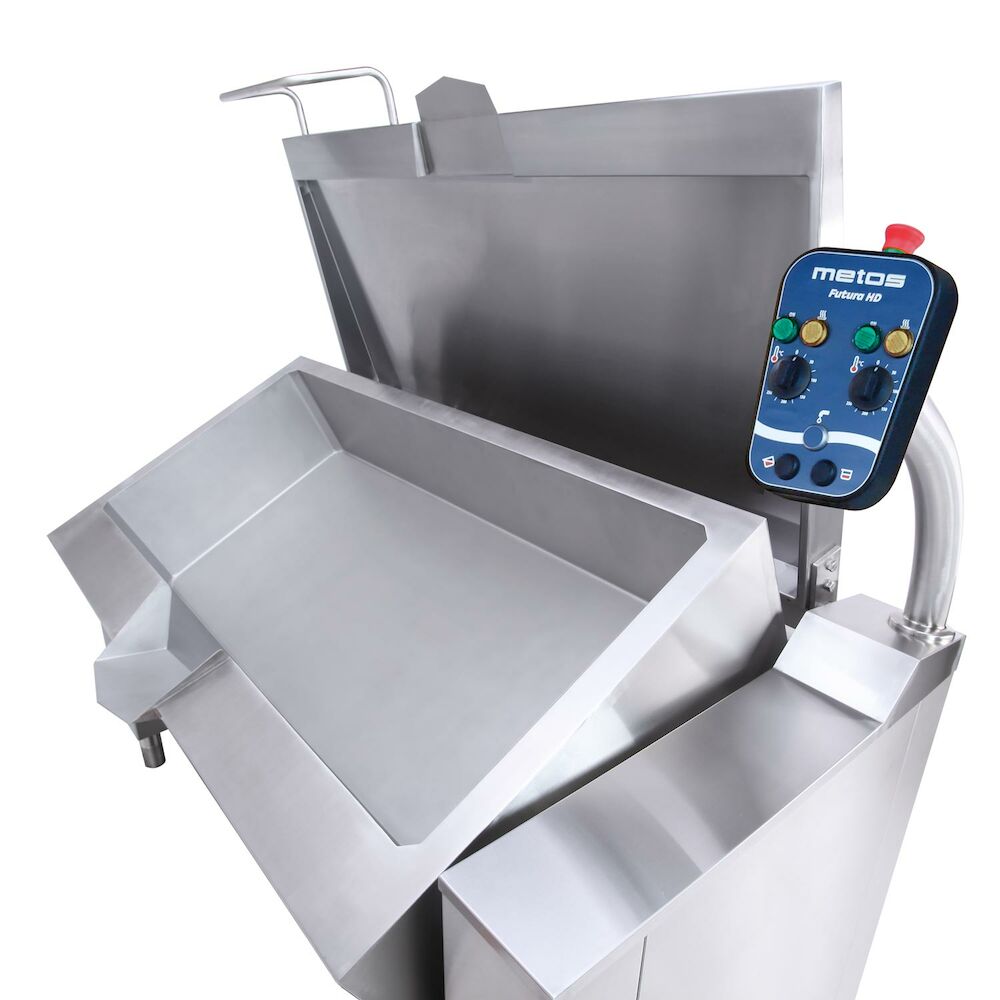

The frying pan is equipped with motorised tilting. The tilting function cannot be used when the lid is on, or when the pan is being filled with water The tilt angle for emptying the pan is 70° and the largest tilt angle is 90° The distance between the pan's pouring spout and the floor is 570 mm (with a tilt angle of 68°).
- balanced and insulated cover
- continuous and seamless stainless steel frying surface
- stainless steel structure

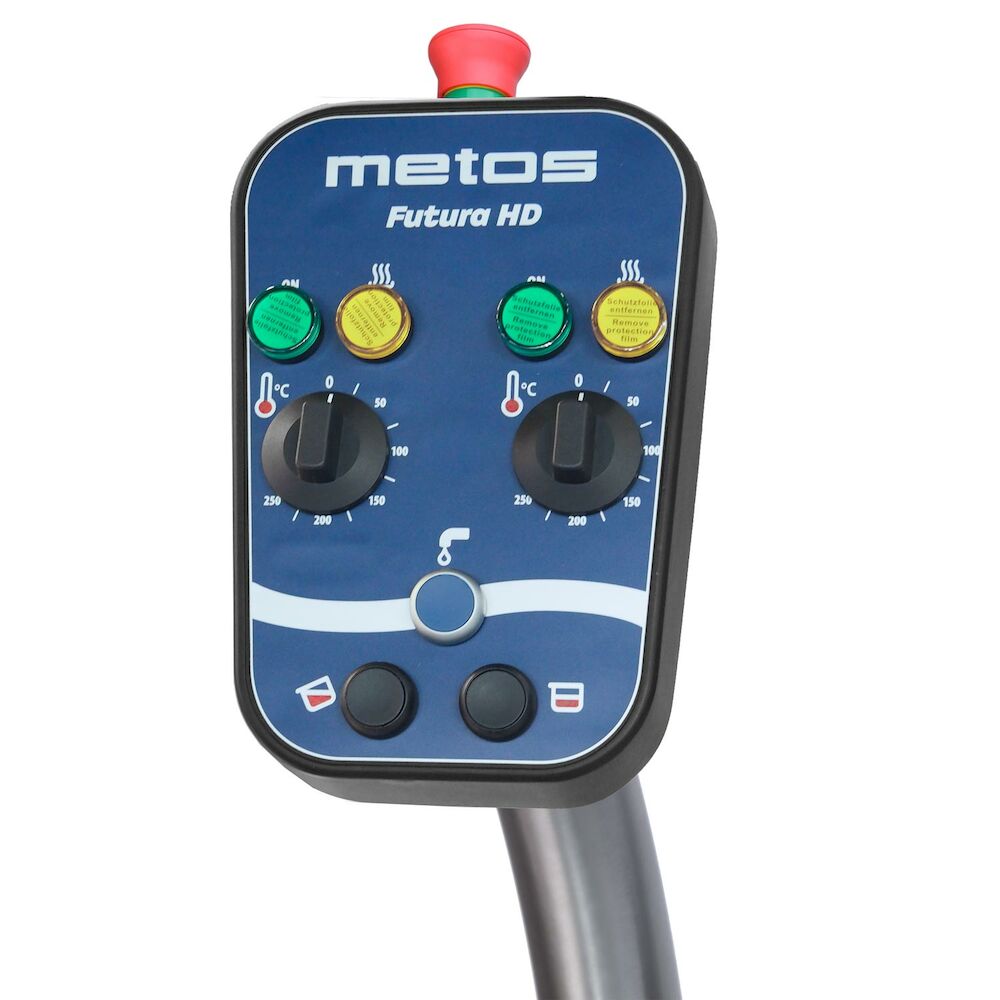

- elevated control panel in the right foot
- electromechanical control
- emergency stop switch
- overheating protection
OPTIONS
- water filling tap
- hand shower
ACCESSORIES (ordered separately)
- strainer plate
Technical specification
General
- Description
- Bratt Pan Metos Futura HD 100L
Dimensions and Capacity
- Product capacity
- 100 litres
- Item width mm
- 1224
- Item depth mm
- 955
- Item height mm
- 1564/1804
- Package volume
- 2.08 m3
- Package dimensions (LxWxH)
- 130x100x160 cm
- Net weight
- 280 kg
- Package weight
- 320 kg
Technical information
- Connection power kW
- 20.7
- Fuse Size A
- 32
- Connection voltage V
- 400/230
- Number of phases
- 3NPE
- Frequency Hz
- 50
- Startup current A
- 30
- Protection rating (IP)
- X4
- Electrical conn. height mm
- 150
- Cold water diam.
- G3/4
- Cold water min pressure kPa
- 20
- Cold water max pressure kPa
- 800
- Floor drain needed
- Yes
- Sound level dB
- 70
- HACCP-connectivity
- NO
- Heat load sensitive W
- 9315
- Heat load latent W
- 8280
Features
- Type
- electric
- Operation type
- electromechanical
- Cleaning
- hand wash
- Tilting
- electric
- Temperature probe
- No
- Oil filtering
- No
- Timer
- No
- Model
- Futura HD
Installation
- Installation
- floor model
Energy and Consumption
- Power type
- electric
