Back bar cooler system
Code: MG4132226

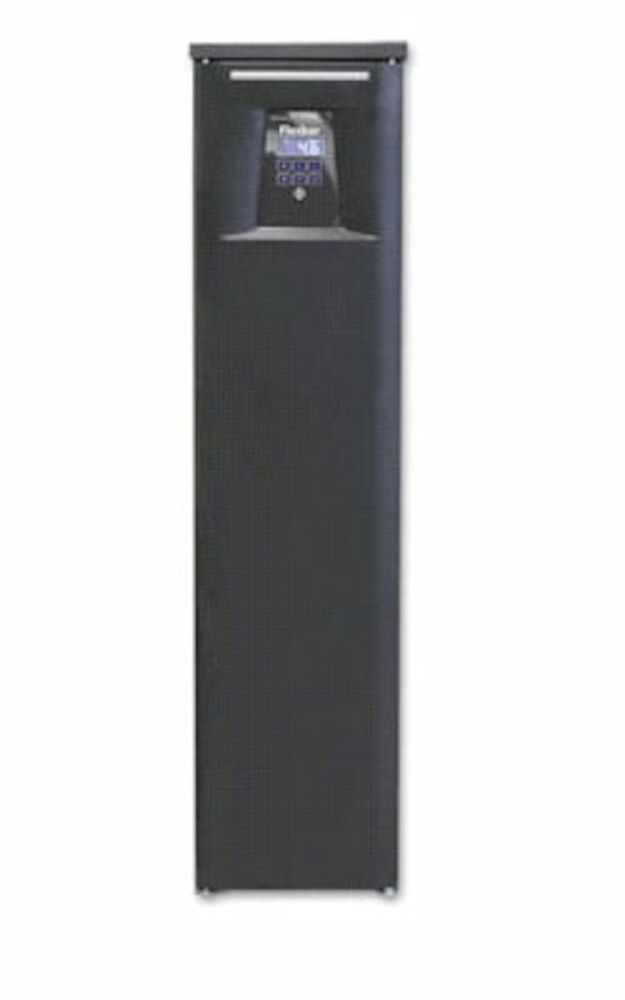

Evaporator unit Metos Flexbar X/VSM20 100 230V1
Exact price on request
(You can build your order basket)
Full description
To be connected for remote cooling. Anthracite black finishing
- digital electronic thermostat
- temperature range +2°C - +12°C
- automatic defrost, drain water pipe 20 mm
- adjustable feet Accessories (will be charged separately)
- set of end panels (obligatory)
Technical specification
General
- Description
- Evaporator unit Metos Flexbar X/VSM20 100 230V1
Dimensions and Capacity
- Item width mm
- 200
- Item depth mm
- 589
- Item height mm
- 860
- Package volume
- 0.19 m3
- Package dimensions (LxWxH)
- 66x96x30 cm
- Net weight
- 25 kg
- Package weight
- 29 kg
Technical information
- Connection power kW
- 0.08
- Fuse Size A
- 6
- Connection voltage V
- 230
- Number of phases
- 1N
- Frequency Hz
- 50
- Type of electrical connection
- Plug
- Electrical conn. height mm
- 50
- Floor drain needed
- Yes
