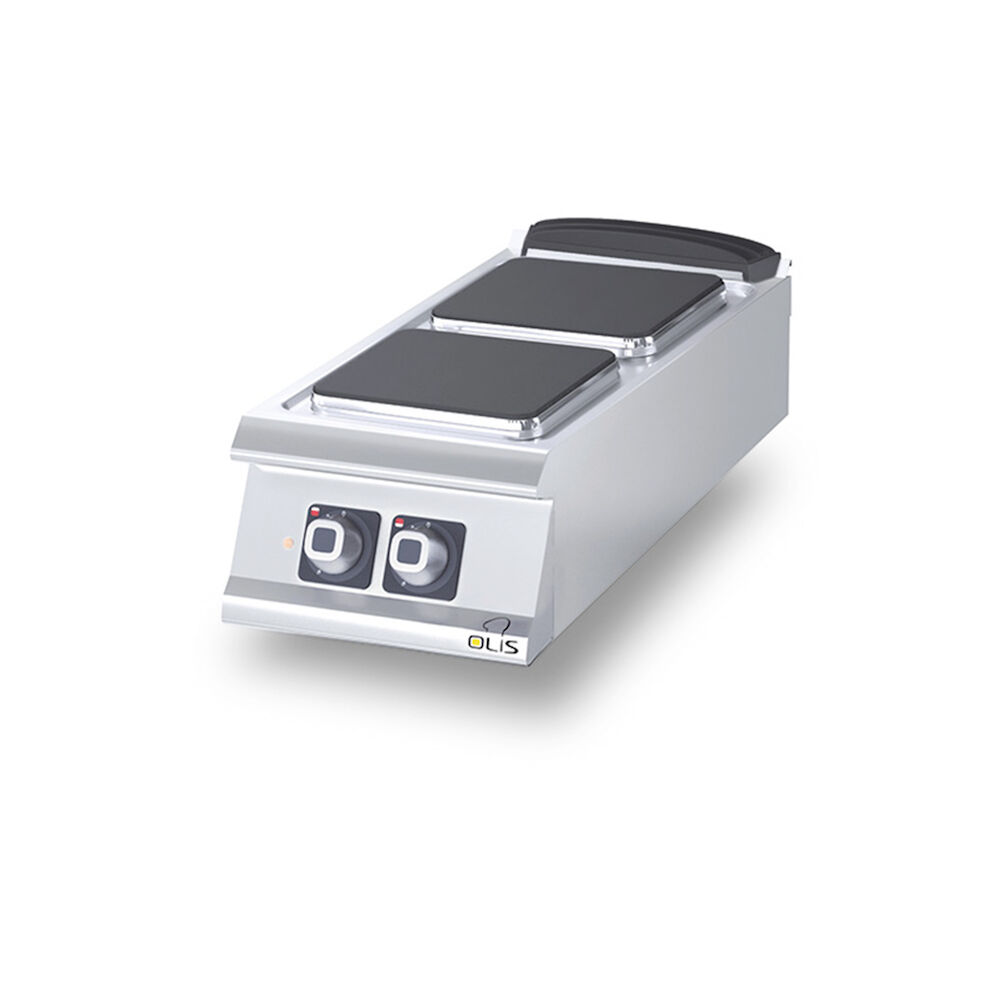

Range Metos Diamante D72/10TCEPQ table top model
Full description
The Metos Diamante 70 D72/10TCEPQ range table top model has two 220 x 220 mm cooking zones. The cast iron 2.6 kW hobs can be adjusted between seven positions using the position control knobs. The control panel has an indicator light, which illuminates when the hob has been switched on. In addition, the hob has a hollow for over boiling, which prevents splashes from flowing to the edges of the unit, and a rear edge that is elevated, to prevent splashes from flowing behind the range.
Every detail of the strong, stylish and hygienic restaurant range series Metos Diamante 70 has been planned as an efficient and functioning solution, from pre-treatment to the preparation of the food itself, without forgetting the need to easily clean the range. Diamante 70 series ranges are available as a table top model as well as with its own cupboard, as single or multiple combined units, and are suitable for use in small to mid-sized to large kitchens. Laser cut range working surfaces allow for the seamless joining together of units into cleanly connected islands or lines in places of heavy use, such as large kit chens.
- two 220 x 220 mm cooking zones (2.6 kW / cooking zone)
- table model
- large splash proof unit control knobs
- exterior and feet are made from stainless steel.
- indicator light
- overheating protection
EXTRA ACCESSORIES (can be ordered separately):
- open stand
- stand with guide rails
- - cupboard doors
- - cupboard doors for utensil frames
- utensil frames; knife rack, utensil rack, spice rack frame, spice jar
- rack
- - drawer for the cupboard
- - cupboard with a heated bottom
- - socket
- side panels.
Technical specification
General
- Description
- Range Metos Diamante D72/10TCEPQ table top model
Dimensions and Capacity
- Item width mm
- 400
- Item depth mm
- 730
- Item height mm
- 250
- Package volume
- 0.108 m3
- Package dimensions (LxWxH)
- 45x80x30 cm
- Net weight
- 30 kg
- Package weight
- 35 kg
Technical information
- Connection power kW
- 5.2
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Type
- electric
- Top material type
- cast iron
- Cooking zone
- 2
- Model
- Diamante
