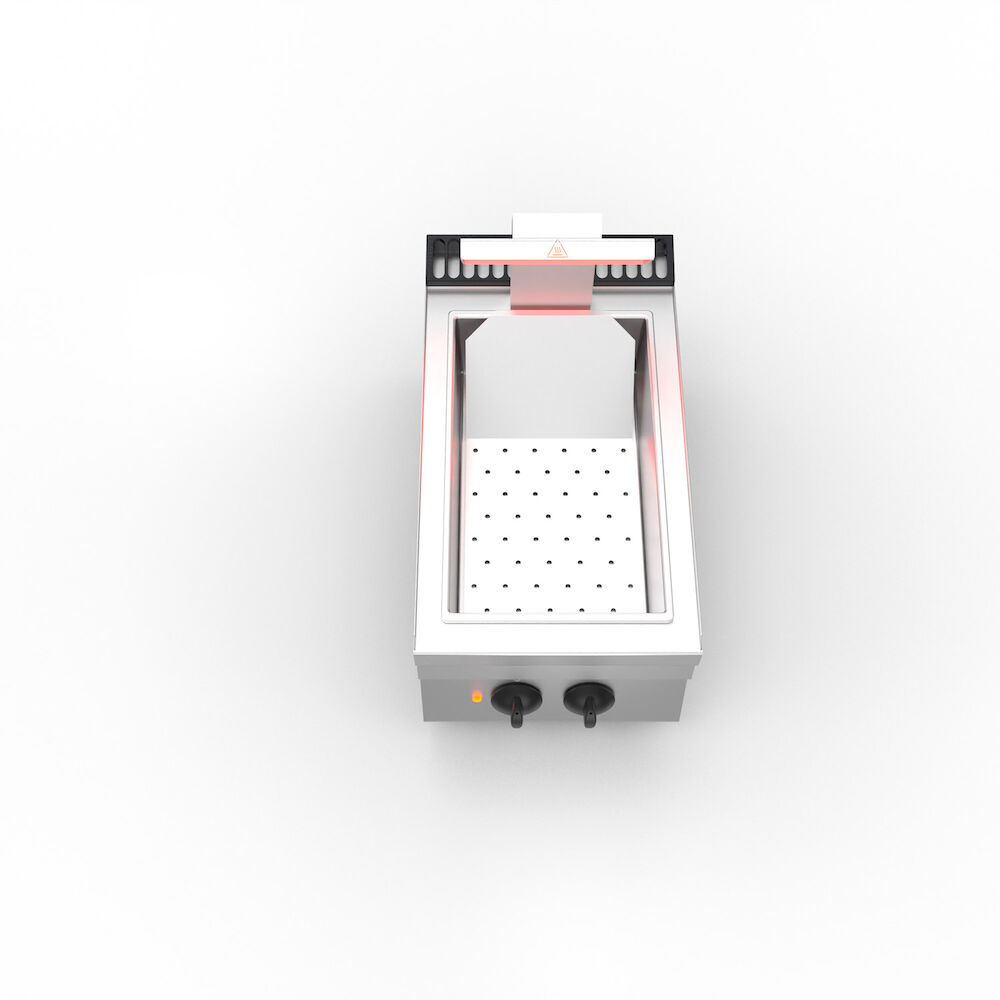

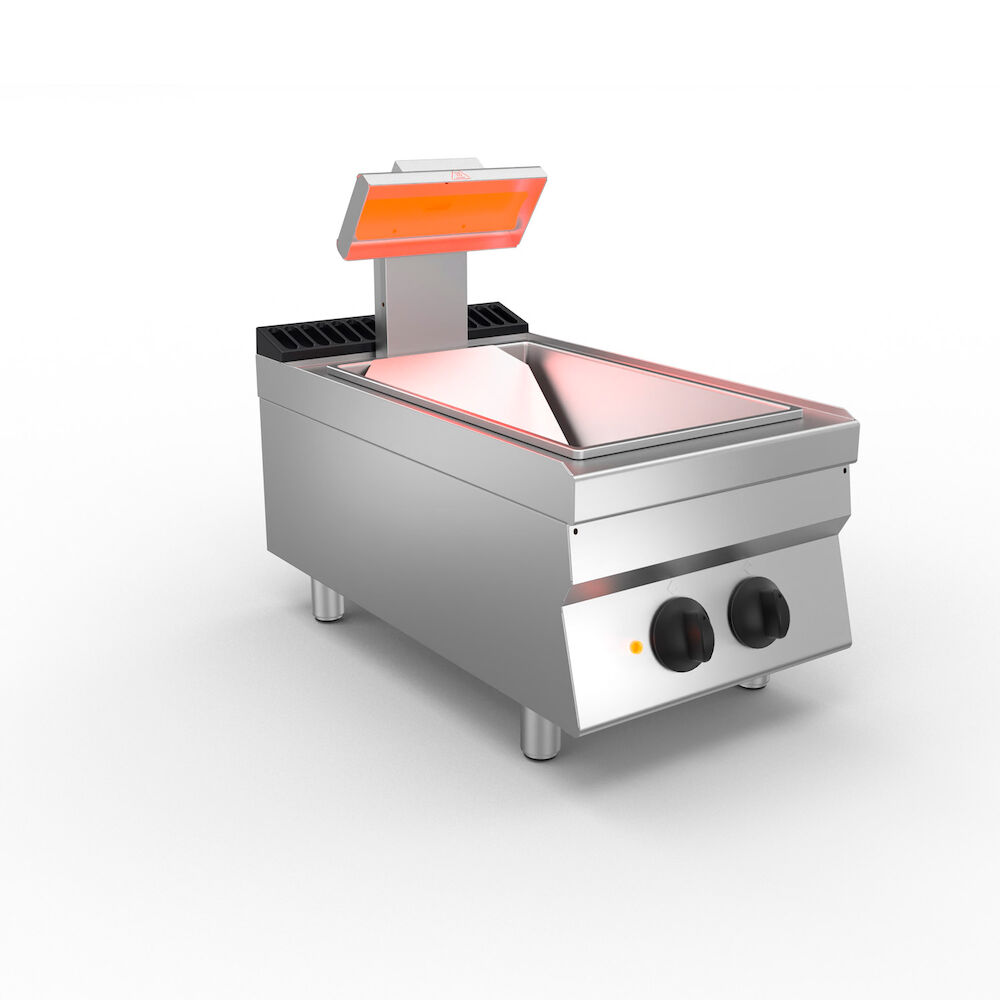

Fries holding station Metos Proxy 74EHCT 230V
Full description
Holding station for fries Metos Proxy 74EHCT
- Moulded top in AISI304 stainless steel with Scotch Brite finish moulded in a single piece guarantee easy cleaning and prevent infiltrations of grime and water
- Front control panel made of AISI304 stainless steel with Scotch Brite finish and profile designed for easy cleaning
- External panelling in stainless steel with Scotch Brite finish
- Top versions with construction designed for installation on open neutral bases or bases with doors, on refrigerated bases and on top surfaces
- Standard h80 mm feet for flat-top installations to facilitate installation, connection and safe maintenance of the equipment
- Removable basin GN1/1 dimensions
- Lower heating by an armoured heating element under the tank and upper heating by an infrared heating element
- Temperature adjustment range from 30°C to 90°C
- Safety thermostat for the prevention of overheating
- IPX4 water-protection rating
- does not include cord and plug
Accessories (separate price):
- JC joint cover - to prevent infiltration of liquid and grime between the elements
- Door M40
- Neutral base M40
- Front plinth M40
Technical specification
General
- Description
- Fries holding station Metos Proxy 74EHCT 230V
Dimensions and Capacity
- Item width mm
- 400
- Item depth mm
- 700
- Item height mm
- 350/610
- Package volume
- 0.218 m3
- Package dimensions (LxWxH)
- 45x85x57 cm
- Net weight
- 20 kg
- Package weight
- 23 kg
Technical information
- Connection power kW
- 2
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Model
- Proxy
