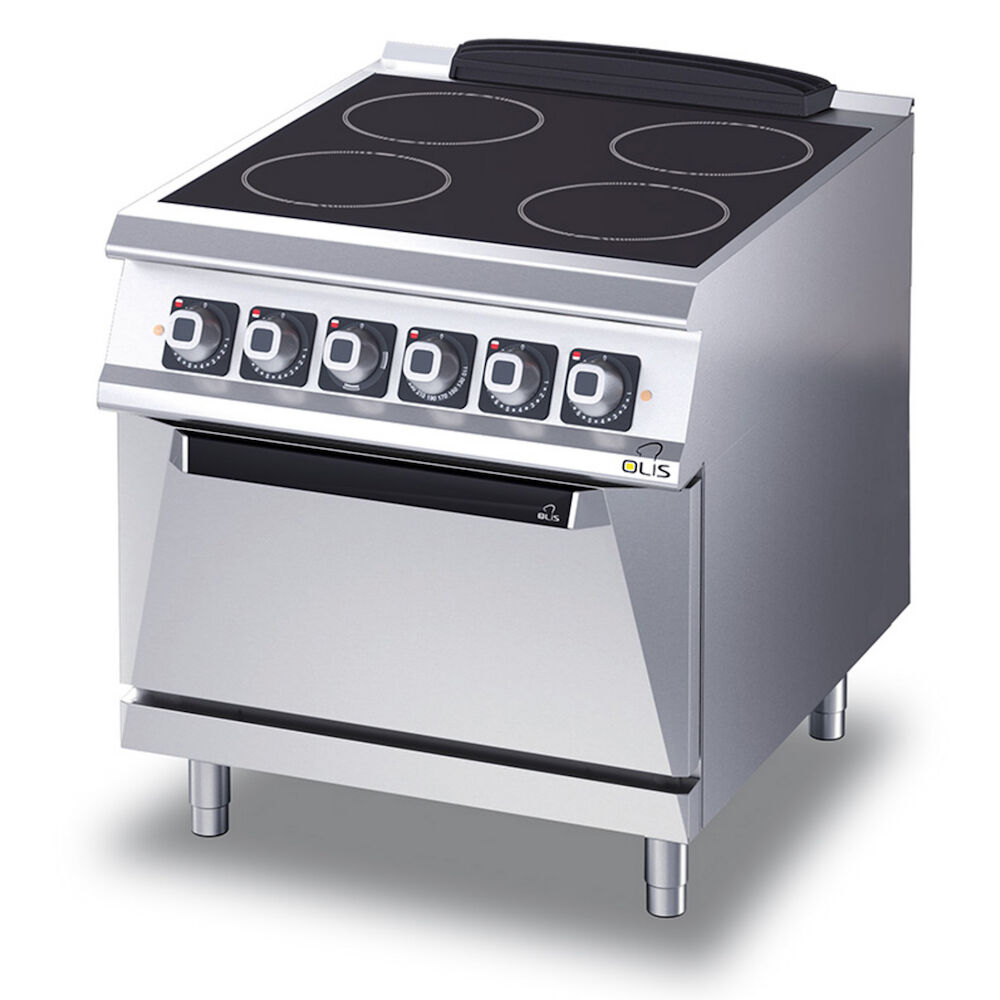

Ceramic range with oven Metos Diamante D74/10VTCE
Full description
The ceramic range Metos Diamante 70 D74/10VTCE has four Ø230 mm 2.5 kW cooking zones. The unbreakable ceramic hob has Ø230 mm cooking zones, the temperatures of which can be regulated by the 10 position control knobs. The control panel has an indicator light, which illuminates when the hob has been switched on. Two different heating areas can be regulated within the cooking zone, independent of pot size. In addition, the rear of the range is at an incline, which prevents splashes from flowing behind the range. The range has a GN2/1 size 6 kW electric oven, the temperature which can be regulated between 0...250 °C. The oven has three pairs of guide rails at intervals of 50 mm.
Every detail of the strong, stylish and hygienic restaurant range series Metos Diamante 70 has been planned as an efficient and functioning solution, from pre-treatment to the preparation of the food itself, without forgetting the need to easily clean the range. Diamante 70 series ranges are available as a table top model as well as with its own cupboard, as single or multiple combined units, and are suitable for use in small to mid-sized to large kitchens. Laser cut range working surfaces allow for the seamless joining together of units into cleanly connected islands or lines in places of heavy use, such as large kitchens.
- four cooking zones (2.5 kW / cooking zone)
- beneath the range is a GN2/1-size electric oven (6 kW)
- large splash proof control knobs
- exterior and feet are made from stainless steel.
- adjustable height 850...920 mm
- overheating protection
SUPPLIED SET INCLUDES:
- one chrome plated rack, size GN2/1.
EXTRA ACCESSORIES (can be ordered separately):
- - GN2/1 racks and sheets
- - socket
- side panels.
Technical specification
General
- Description
- Ceramic range with oven Metos Diamante D74/10VTCE
Dimensions and Capacity
- Item width mm
- 800
- Item depth mm
- 730
- Item height mm
- 870
- Package volume
- 0.566 m3
- Package dimensions (LxWxH)
- 82x75x92 cm
- Net weight
- 135 kg
- Package weight
- 140 kg
Technical information
- Connection power kW
- 16
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Raw material
- stainless steel
- Type
- electric
- Operation type
- electromechanical
- Top material type
- ceramic
- Cooking zone
- 4
- Frying top type
- smooth
- Model
- Diamante
