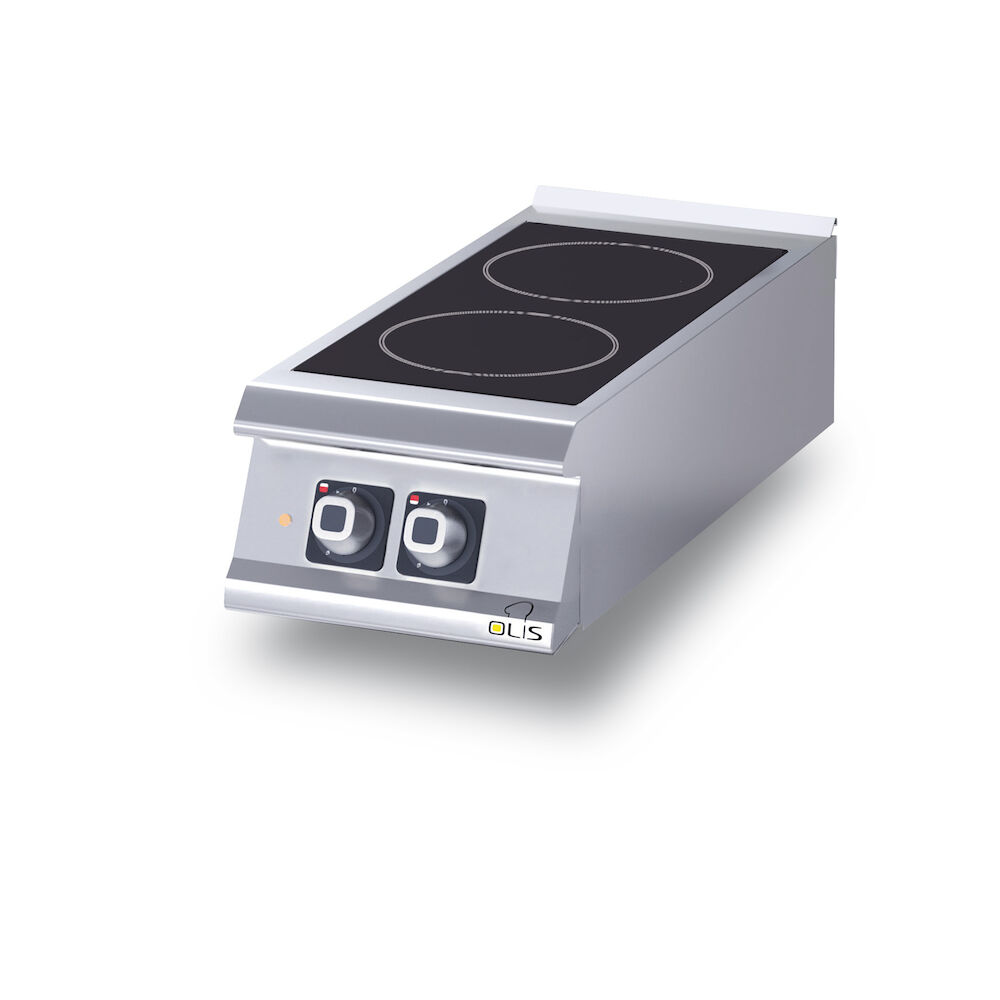

Ceramic range Metos Diamante D72/10TVTC table top model
Full description
The table top model of the Metos Diamante 70 D72/10TVTC ceramic range has two 2.5 kW cooking zones. The unbreakable ceramic hob has Ø230 mm cooking zones, the temperatures of which can be regulated by the 10 position control knobs. The control panel has an indicator light, which illuminates when the hob has been switched on. Two different heating areas can be regulated within the cooking zone, independent of pot size. In addition, the rear of the range is at an incline, which prevents splashes from flowing behind the range.
Every detail of the strong, stylish and hygienic restaurant range series Metos Diamante 70 has been planned as an efficient and functioning solution, from pre-treatment to the preparation of the food itself, without forgetting the need to easily clean the range. Diamante 70 series ranges are available as a table top model as well as with its own cupboard, as single or multiple combined units, and are suitable for use in small to mid-sized to large kitchens. Laser cut range working surfaces allow for the seamless joining together of units into cleanly connected islands or lines in places of heavy use, such as large kitchens.
- two cooking zones (2.5 kW / cooking zone)
- table top model
- large splash proof control knobs
- exterior and feet are made from stainless steel.
- overheating protection
EXTRA ACCESSORIES (can be ordered separately):
- open stand
- stand with guide rails
- - cupboard doors
- - cupboard doors for utensil frames
- utensil frames; knife rack, utensil rack, spice rack frame, spice jar
- rack
- - drawer for the cupboard
- - with a heated bottom
- - socket
- side panels.
Technical specification
General
- Description
- Ceramic range Metos Diamante D72/10TVTC table top model
Dimensions and Capacity
- Item width mm
- 400
- Item depth mm
- 730
- Item height mm
- 250
- Package volume
- 0.945 hl
- Package dimensions (LxWxH)
- 42x75x30 cm
- Net weight
- 30 kg
- Package weight
- 30 kg
Technical information
- Connection power kW
- 5
- Connection voltage V
- 400
- Number of phases
- 3NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
Features
- Raw material
- stainless steel
- Type
- electric
- Operation type
- electromechanical
- Top material type
- ceramic
- Cooking zone
- 2
- Frying top type
- smooth
- Model
- Diamante
Installation
- Installation
- free standing
- Installation
- table model
- Installation
- fixed
