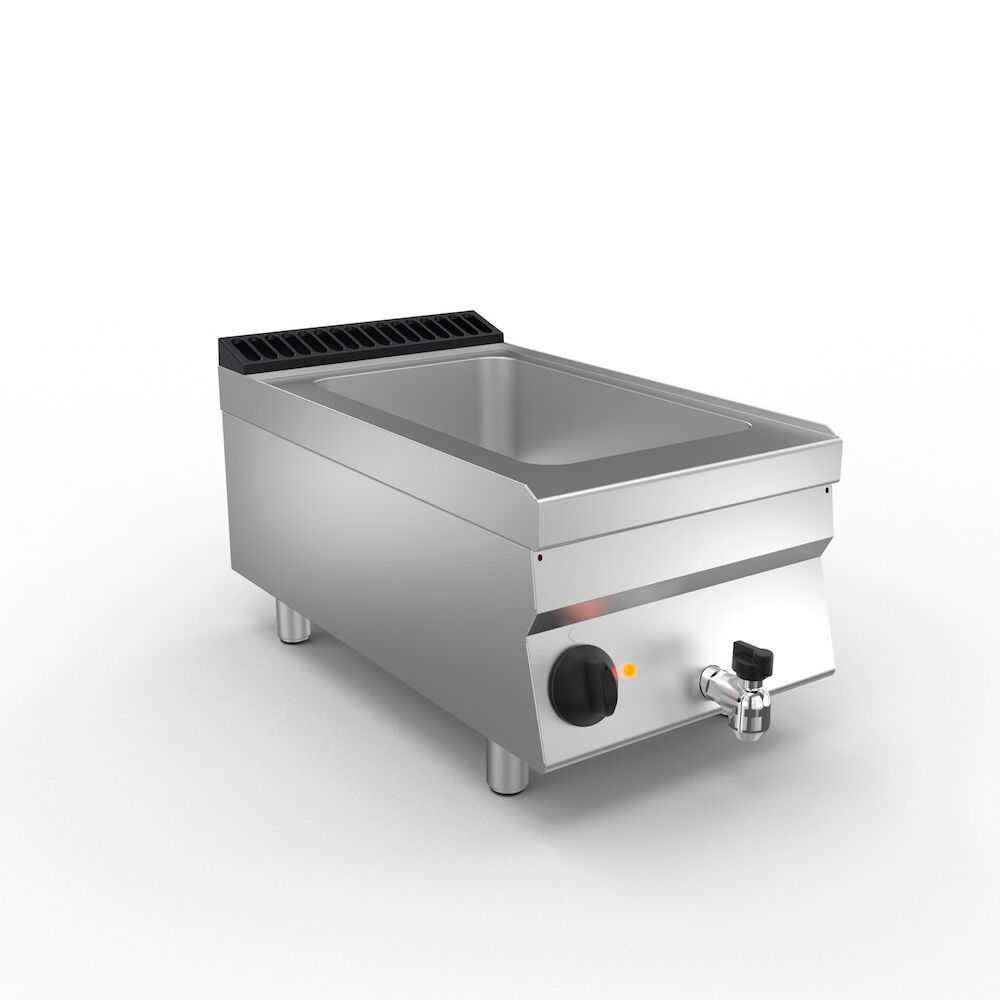

Bain Marie Metos Proxy 74EBMT
Full description
Electric Bain Marie Metos Proxy 74EBMT with tank capacity GN1/1.
- Moulded top in AISI304 stainless steel with Scotch Brite finish moulded in a single piece guarantee easy cleaning and prevent infiltrations of grime and water
- Front control panel made of AISI304 stainless steel with Scotch Brite finish and profile designed for easy cleaning
- External panelling in stainless steel with Scotch Brite finish
- Top versions with construction designed for installation on open neutral bases or bases with doors, on refrigerated bases and on top surfaces.
- Standard h80 mm feet for flat-top installations to facilitate installation, connection and safe maintenance of the equipment
- Tap for control of the water capacity located in the front panel
- Resistance group external to the tank with temperature regulation by thermostat from 30 ° C to 90 ° C.
- Maximum water level indication printed in the tank
- Manual water filling
- Temperature adjustment 30 - 90 °C
- IPX4 water-protection rating
- does not include cord and plug
- Standard equipment: perforated false bottom and overflow drain
Accessories (separate price):
- JC joint cover - connection of the modules by means of a dedicated element to prevent infiltration of liquid and grime between the elements
- Door M40
- Neutral base M40
- Front plinth M40
- Closing panel for technical cabinet
Technical specification
General
- Description
- Bain Marie Metos Proxy 74EBMT
Dimensions and Capacity
- Product capacity
- 1xGN1/1-150
- Item width mm
- 400
- Item depth mm
- 700
- Item height mm
- 345
- Package volume
- 0.218 m3
- Package dimensions (LxWxH)
- 45x85x57 cm
- Net weight
- 32.5 kg
- Package weight
- 35 kg
Technical information
- Connection power kW
- 1
- Connection voltage V
- 220-240
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Plug
Features
- Raw material
- stainless steel
- Operation type
- electromechanical
- Model
- Proxy
