700 depth restaurant series

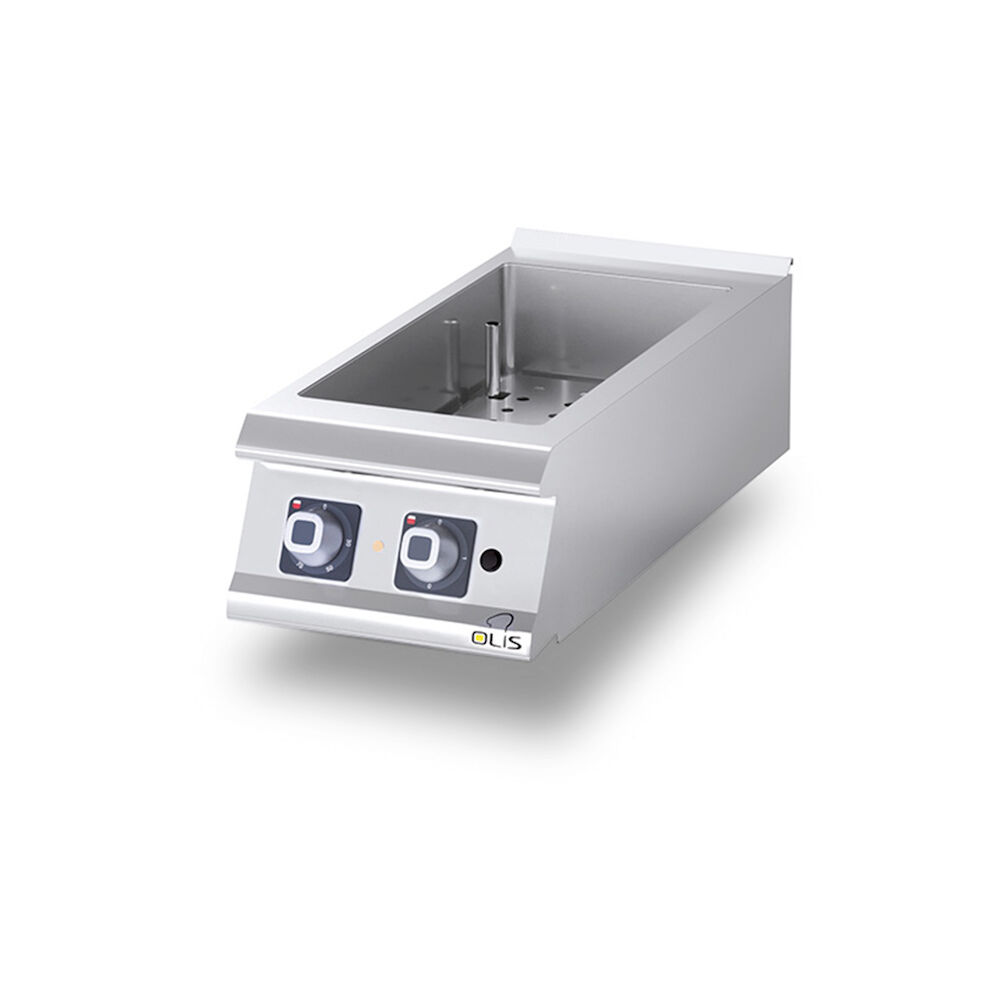

Bain-marie Metos Diamante D72/10TCBE table top model
Exact price on request
(You can build your order basket)
Full description
The table-top Bain-marie Metos Diamante D72 / 10TCBE has space for one GN1 / 1-150 container. Filling the bain-marie is easy at the touch of a button, the temperature is adjustable from 30 ° C to 90 ° C. The vat has an overflow pipe and drain for emptying. The thermal resistors are protected under a perforated base. The levels of the appliances are laser-cut, which ensures that the appliances can be combined into a neat, converging island or line for demanding conditions.
- table model
- capacity 1xGN1 / 1-150
- large controls are splash-proof
- overheating protection
ACCESSORIES (to be ordered separately):
- GN containers
- open stand
- door for the stand
- stand door for equipment racks
- equipment racks; knife rack, external rack, spice rack, spice jar rack
- drawer on the base
- guide rail for stand (6 guides)
- pedestal guide support
- heating base for the stand
- plinth
- side panels
Technical specification
General
- Description
- Bain-marie Metos Diamante D72/10TCBE table top model
Dimensions and Capacity
- Item width mm
- 400
- Item depth mm
- 730
- Item height mm
- 250
- Package volume
- 0.945 hl
- Package dimensions (LxWxH)
- 42x75x30 cm
- Net weight
- 33 kg
- Package weight
- 43 kg
Technical information
- Connection power kW
- 1.8
- Connection voltage V
- 230
- Number of phases
- 1NPE
- Frequency Hz
- 50/60
- Protection rating (IP)
- X4
- Type of electrical connection
- Semifixed
- Drain diameter
- 1/2"
Features
- Raw material
- stainless steel
- Operation type
- electromechanical
- Model
- Diamante
Installation
- Installation
- free standing
- Installation
- table model
- Installation
- fixed
